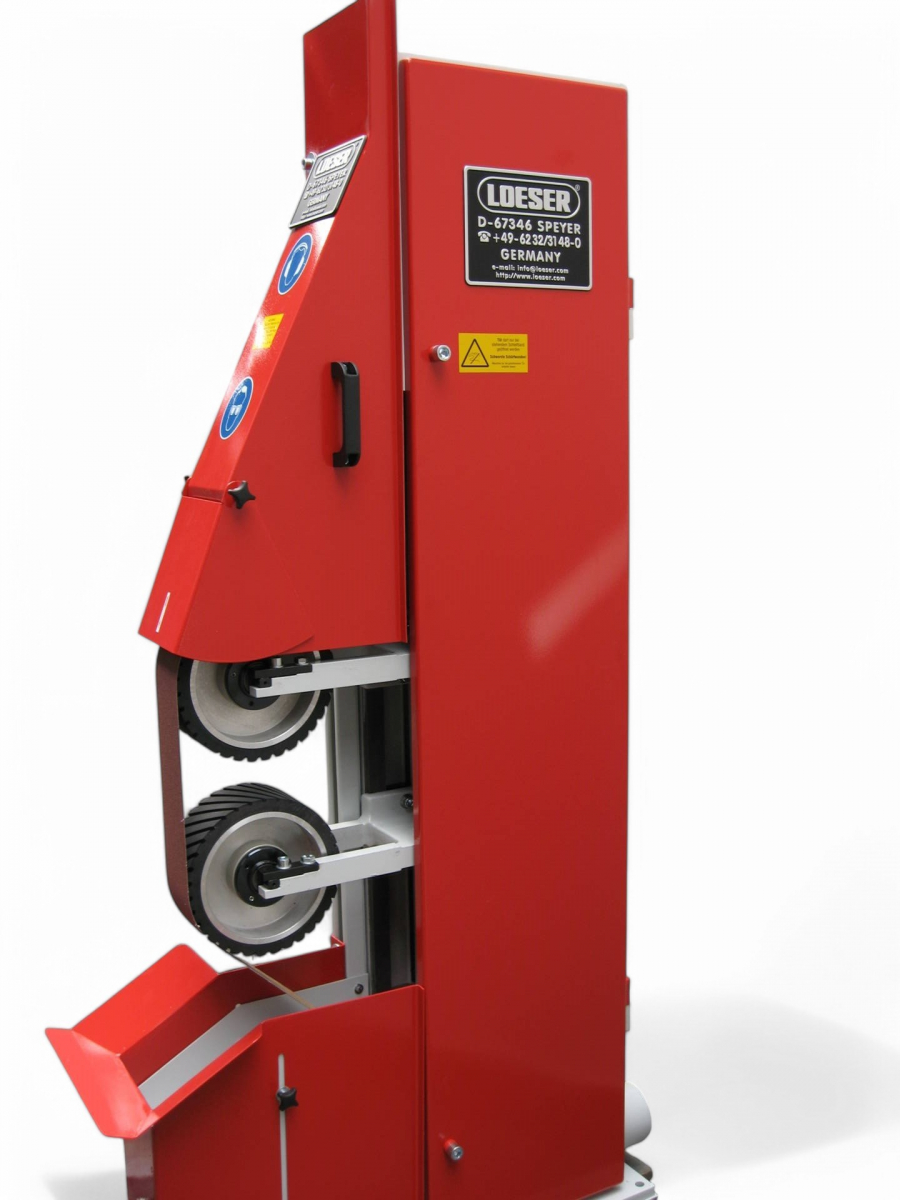

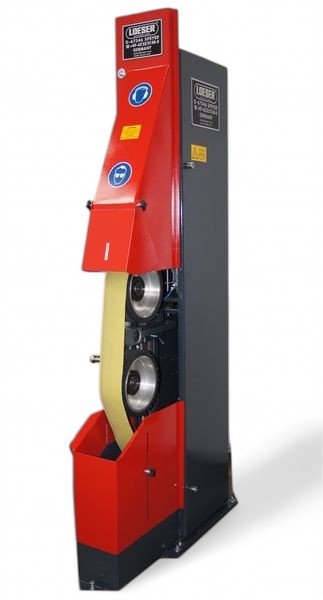

Abrasive belt grinding machine, type KS 100


Abrasive belt grinding machine, type KS 100

Grinding machine for universal use in surface processing operations for manual and robot-assisted grinding and polishing. The sophisticated design allows the use of various attachment arms and contact rollers while maintaining a consistent optimal belt cutting speed in a compact design and is suitable for robot cells.

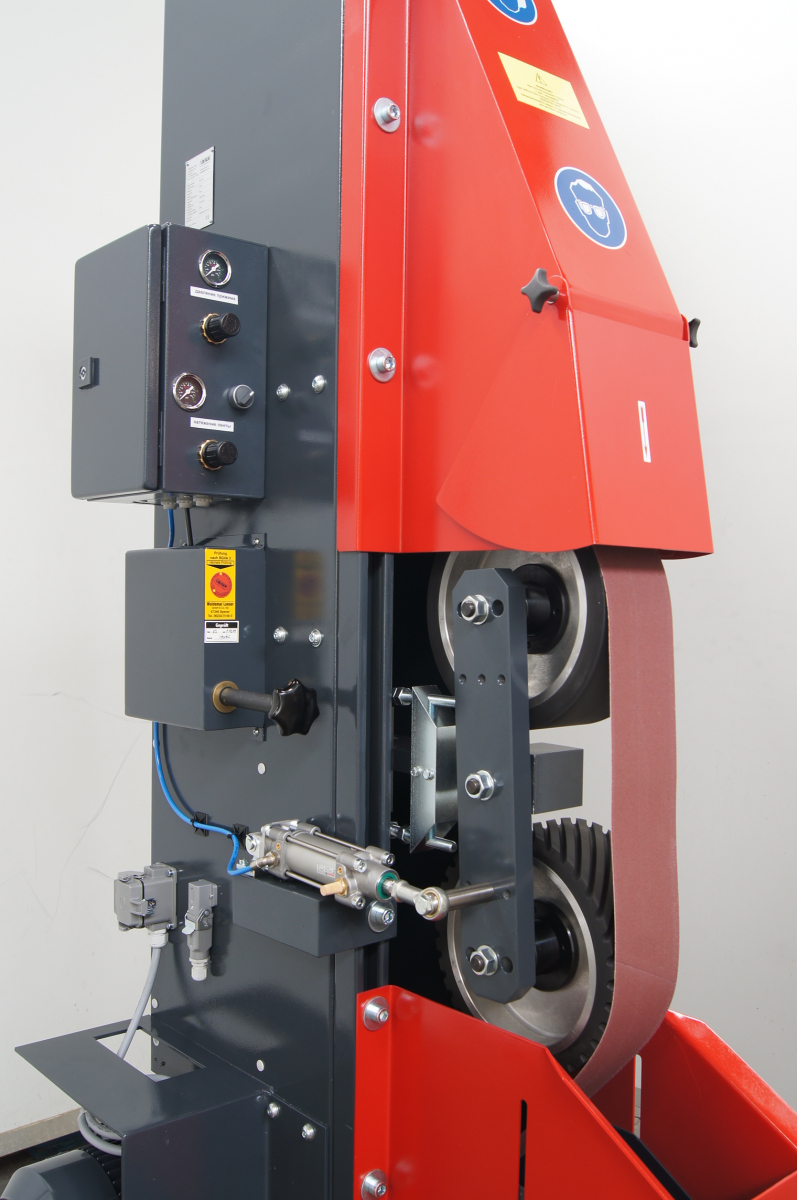

  • Pneumatic belt tensioning
  • neumatically controlled contact roll with end stop
  • Belt break control
  • Optional with or without electric control box
  • Application-related special attachments possible

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

    Request a quote


    Your contact details






    Address




    These details enable us to recommend the most suitable system: (optional)











    Information about the machine used (optional)











    We need fields marked with * to process your request.

    Request a quote

    Technical data

    Motor capacity3,2 / 4 kW
    Belt length3.500 – 4.000 mm
    Belt width10 – 100 mm

    Attachments for contact grinding machines type KS 100


    Videos contact grinding machine type KS 100

    KS 100 with contact shoe

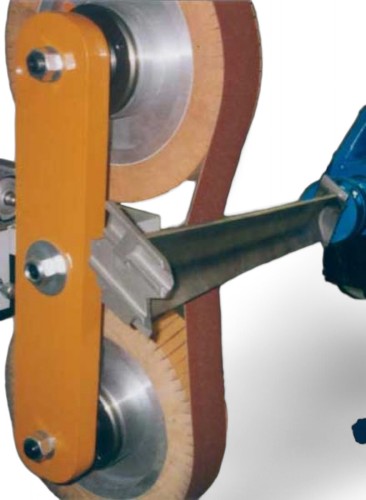

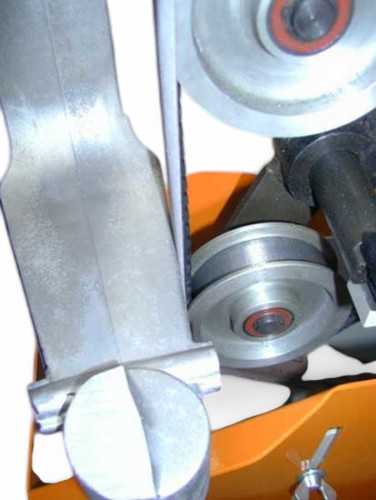

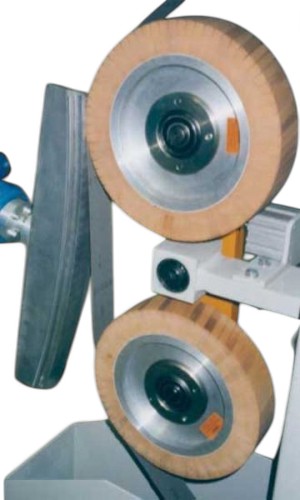

    KS 100 – grinding turbine blades


    Gallery
