Abrasive belt grinding machine, type KS 360

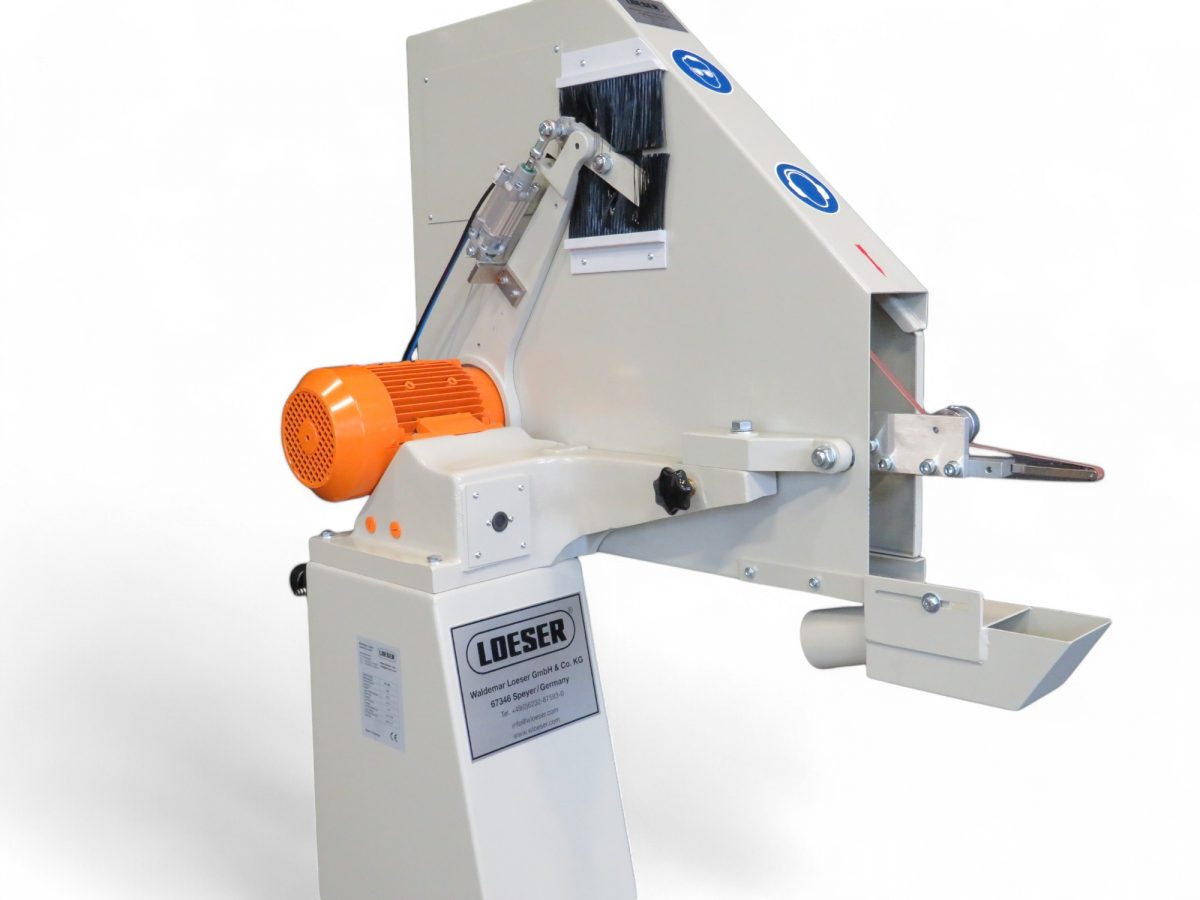

Mechanical belt tensioning (standard design)
A 3-roll belt tracking ensures constant belt speed regardless of the contact wheel diameter. It further ensures precise belt guide and easy belt control. In case of a belt break, drive is immediately disconnected. Therefore, the risk of an accident is eliminated.
Contact disks of 12 – 300 mm diameters (special accessories), wide choice of grinding attachments for any kind of surface finishing. (Sspecial accessories)
Maintenance-free, dust-proof contact disk bearing with permanent lubrication, contact disk change in less than 1 minute.

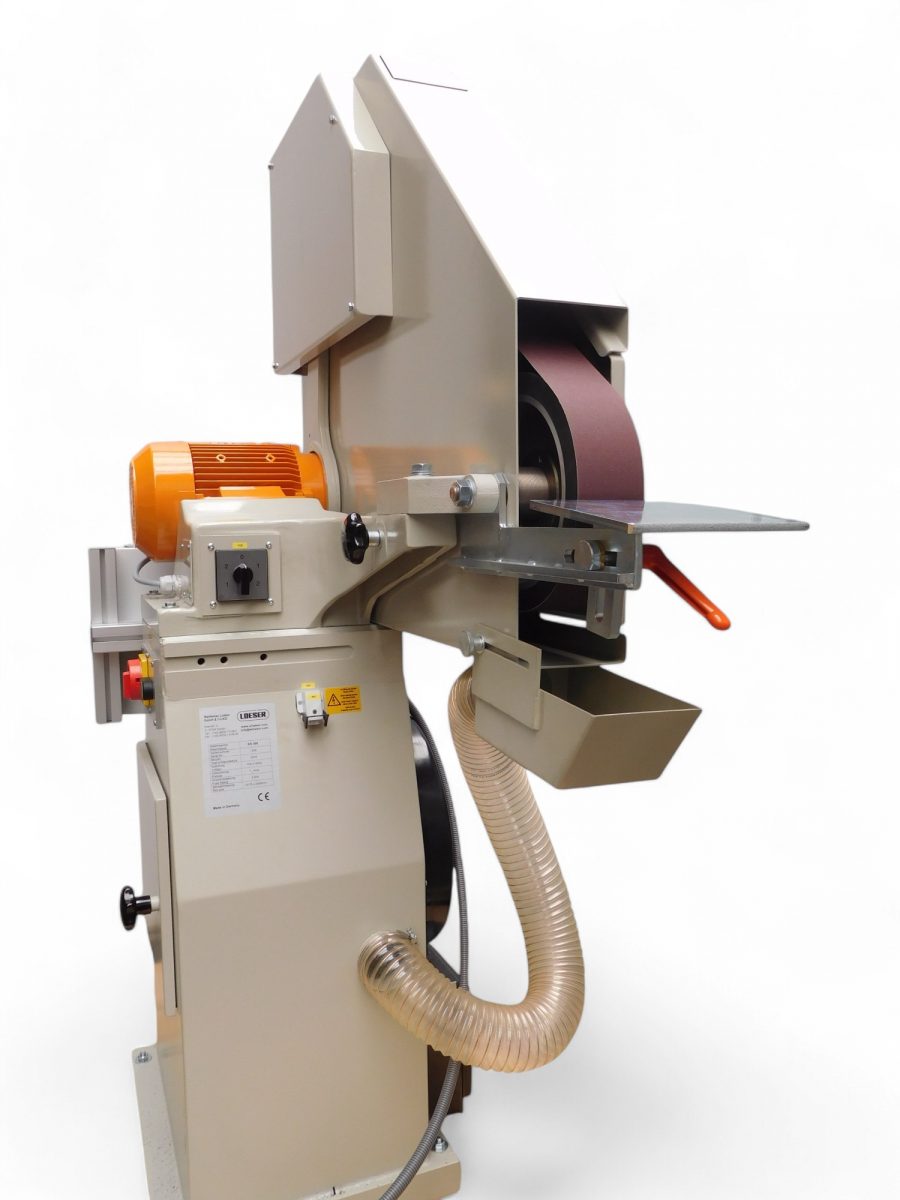

Belt safety cover, suction funnel (special accessories)

Subject to technical modifications.

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

Request a quote

Request a quote for the following machine:

Your contact details

Name:*

Company:

E-mail address:*

Phone:

Address

Street, No.:*

ZIP / City:*

These details enable us to recommend the most suitable system: (optional)

Description of workpiece:

Required operation and
finish:

Type of material:

Dimensions:

What has to be taken into consideration?

Production rate per day:

Production rate per series:

What time cycle?

Do you need increased
capacity?

Information about the machine used (optional)

Machine used:

Belt speed:

Type of contact wheel:

Time / quantity / grit:

Do you employ skilled
operators?

Do you employ unskilled operators?

How many operators are employed at present?

Your message (optional):

I have read the privacy policy. I agree that my information and data will be collected and stored electronically to answer my inquiry. Note: You can revoke your consent at any time in the future by sending an email to info@wloeser.com.*

We need fields marked with * to process your request.

Technical data
Attachments
Videos
Gallery

Technical data

Engine performance	1,6/2,6 kW
Belt speed	7.5 – 34 m/sec.
Drive pulleys	from 100 – 225 mm Ø
Sanding belt length	2,500 mm
Sanding belt width	5 – 75 mm possible
