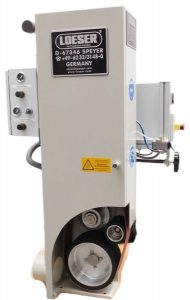

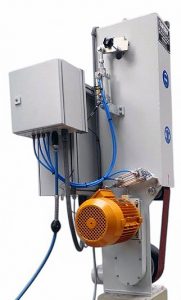

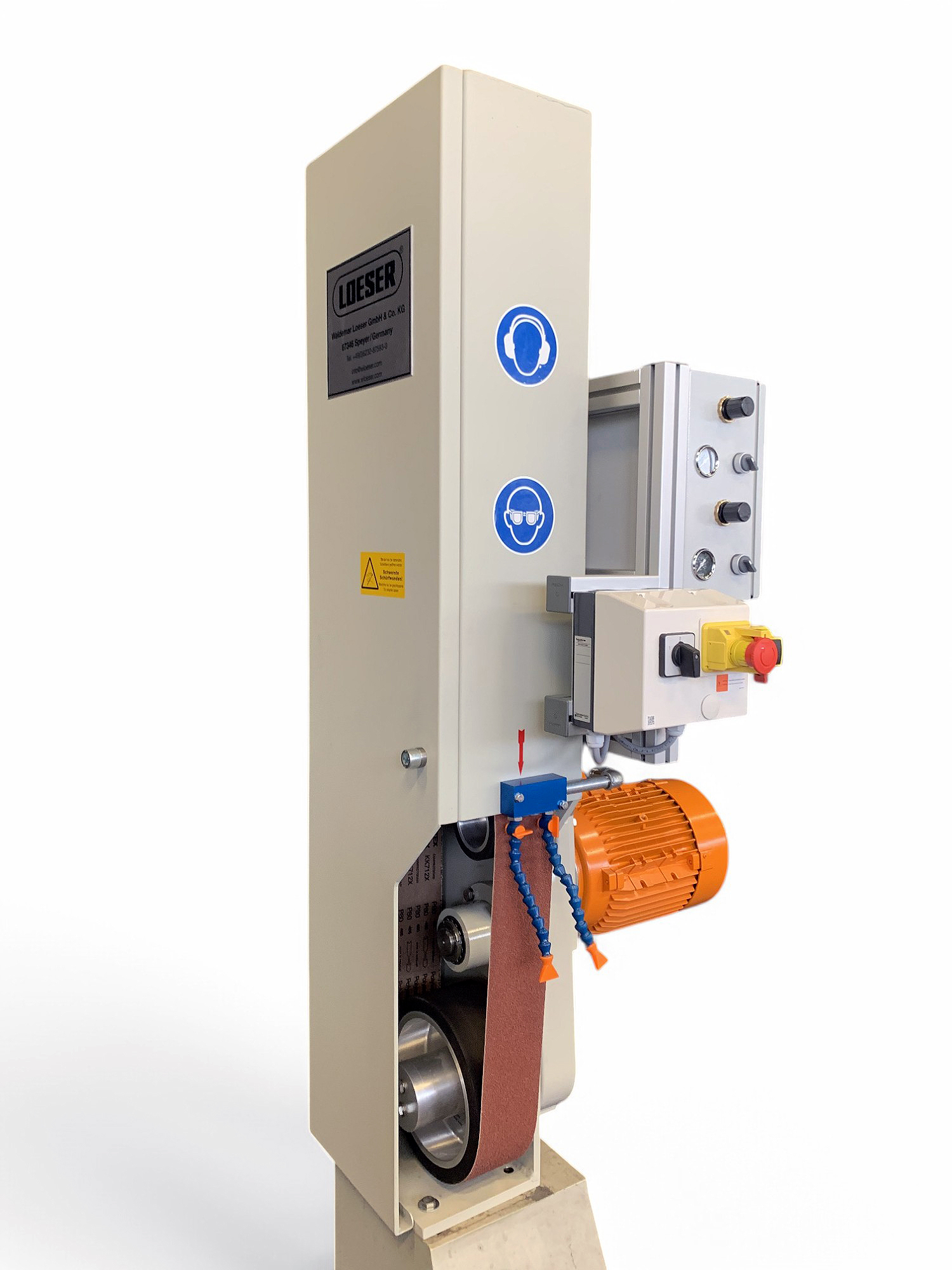

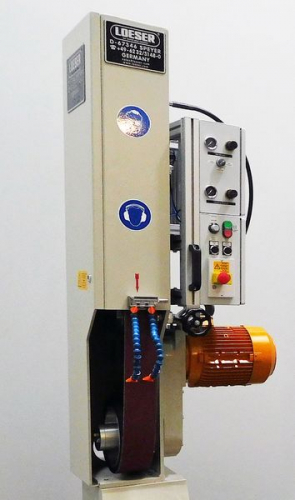

Support belt grinding machine, model SO 337

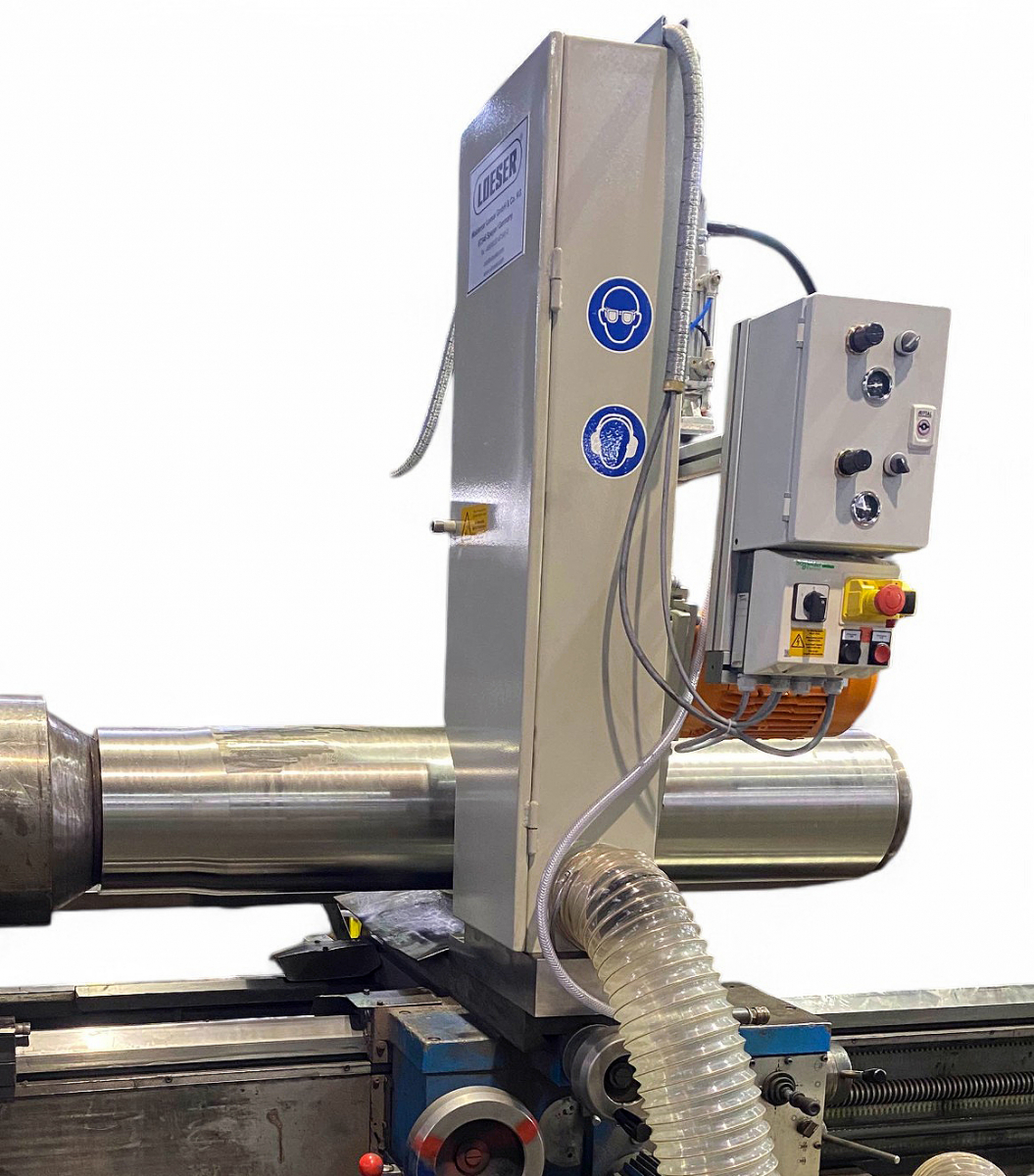

For mounting on lathes
for grinding with abrasive belts
for brushing, polishing, satin finishing with wheels
suitable for any lathe
tolerance compensation by floating contact wheel

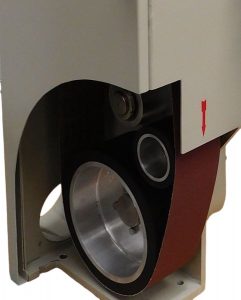

The support belt grinders have a pendulum-mounted contact wheel, which guarantees an even contact pressure during grinding. Round and conical parts possible. Different versions available depending on set up front or back mounting possible.
Machine types for Ø 10 up to 3000 mm. Standard version up to Ø 500 mm, special version up to Ø 3000 mm.

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

Request a quote

Request a quote for the following machine:

Your contact details

Name:*

Company:

E-mail address:*

Phone:

Address

Street, No.:*

ZIP / City:*

These details enable us to recommend the most suitable system: (optional)

Description of workpiece:

Required operation and
finish:

Type of material:

Dimensions:

What has to be taken into consideration?

Production rate per day:

Production rate per series:

What time cycle?

Do you need increased
capacity?

Information about the machine used (optional)

Machine used:

Belt speed:

Type of contact wheel:

Time / quantity / grit:

Do you employ skilled
operators?

Do you employ unskilled operators?

How many operators are employed at present?

Your message (optional):

I have read the privacy policy. I agree that my information and data will be collected and stored electronically to answer my inquiry. Note: You can revoke your consent at any time in the future by sending an email to info@wloeser.com.*

We need fields marked with * to process your request.

Technical data
Video
Accessories, data sheets and spare parts
Gallery

Technical data

Belt dimensions	100 x 2500 mm, 100 x 3000 mm, 150 x 3500 mm
Motor	4 kW, 2,900 revs./min.
Belt speed	28 m/sec.
Contact disk dimensions	250 mm x max. 100 mm wide
Contact disk	supported on a self-aligning bearing
Protection cover with suction nozzles	100 mm Ø
Contact pressure	pneumatically adjustable
Weight	approx. 160 kg
Dimensions	Height 1,300 x width 600 x depth 400 mm
Voltage	400 Volt
