Cylindrical rod sanding machine RS 100

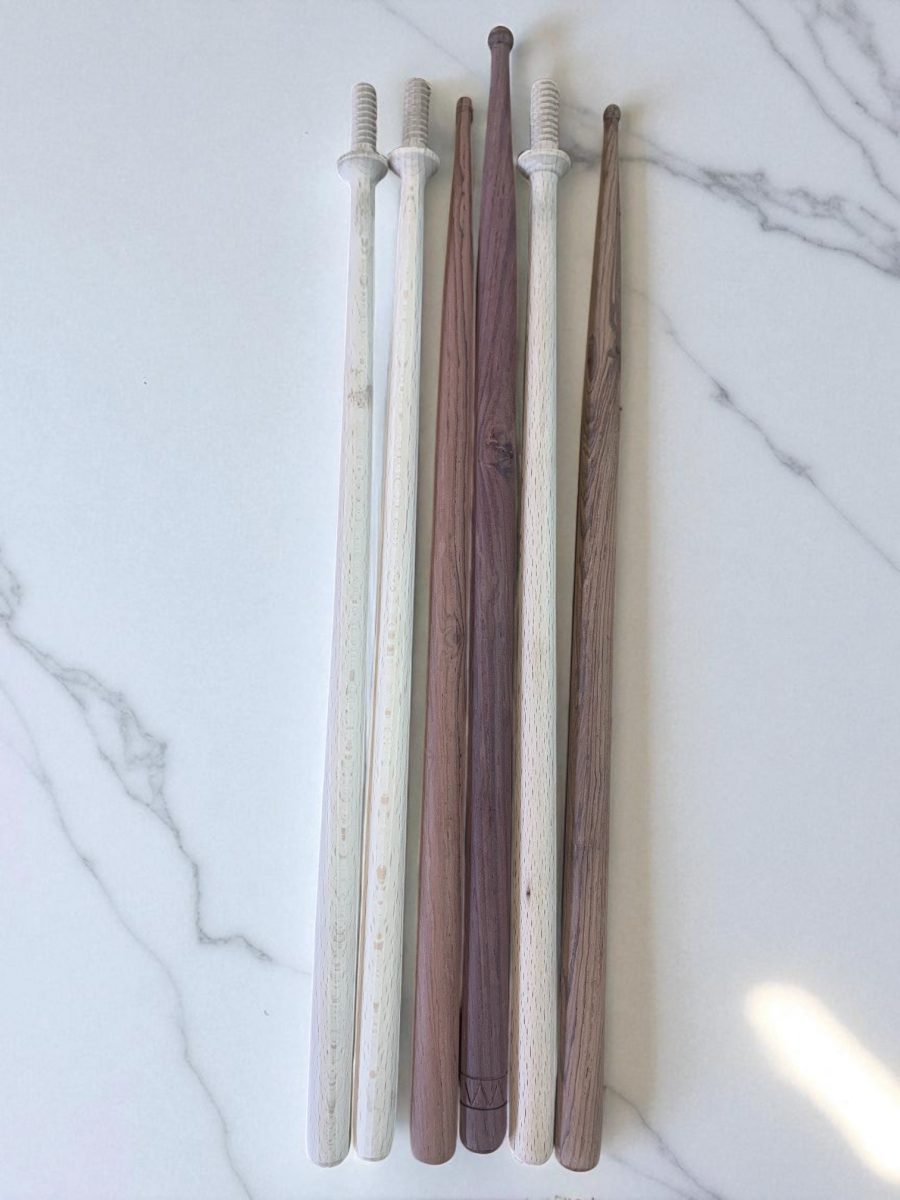

For cylindrical, conical, slightly crowned, short & long or slightly curved bars
Also for polishing and waxing of rods and tubes

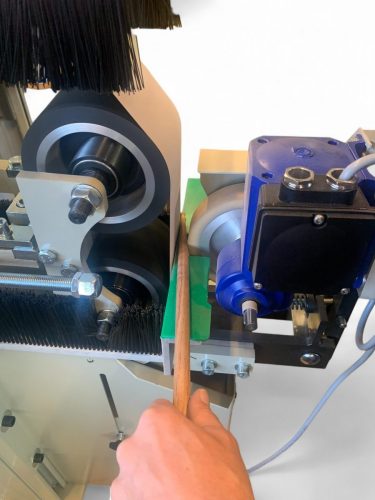

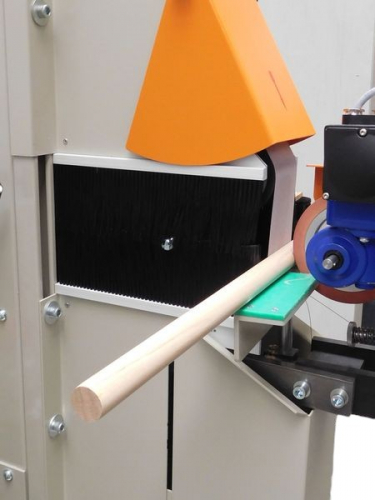

Grinding on the free belt
Feed speed adjustable via inclined position – forward and backward movement possible

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

Request a quote

Request a quote for the following machine:

Your contact details

Name:*

Company:

E-mail address:*

Phone:

Address

Street, No.:*

ZIP / City:*

These details enable us to recommend the most suitable system: (optional)

Description of workpiece:

Required operation and
finish:

Type of material:

Dimensions:

What has to be taken into consideration?

Production rate per day:

Production rate per series:

What time cycle?

Do you need increased
capacity?

Information about the machine used (optional)

Machine used:

Belt speed:

Type of contact wheel:

Time / quantity / grit:

Do you employ skilled
operators?

Do you employ unskilled operators?

How many operators are employed at present?

Your message (optional):

I have read the privacy policy. I agree that my information and data will be collected and stored electronically to answer my inquiry. Note: You can revoke your consent at any time in the future by sending an email to info@wloeser.com.*

We need fields marked with * to process your request.

Technical data
Accessories, data sheets and spare parts
Gallery

Technical data

Working range	Ø 10-80 mm
Belt length	3.500 – 4.000 mm
Belt width	50 – 100 mm
Drive pulley	Ø 240 mm
Feed speed	0 – 5 mtr/min
Belt speed	13,5 / 27 mtr/sec.
