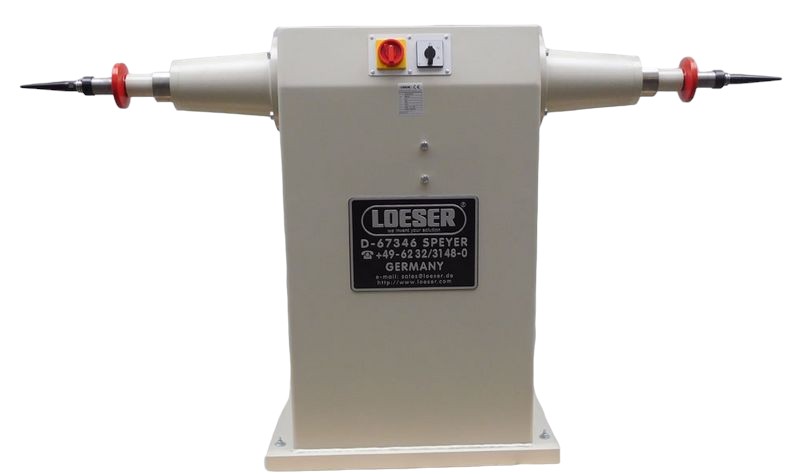

Polishing Machine Type SMZ 57

  • With 1 built-in-motor, divided sindle shaft and V-belt drive
  • On low pdedestal, spindle height 600 mm

Accessories:

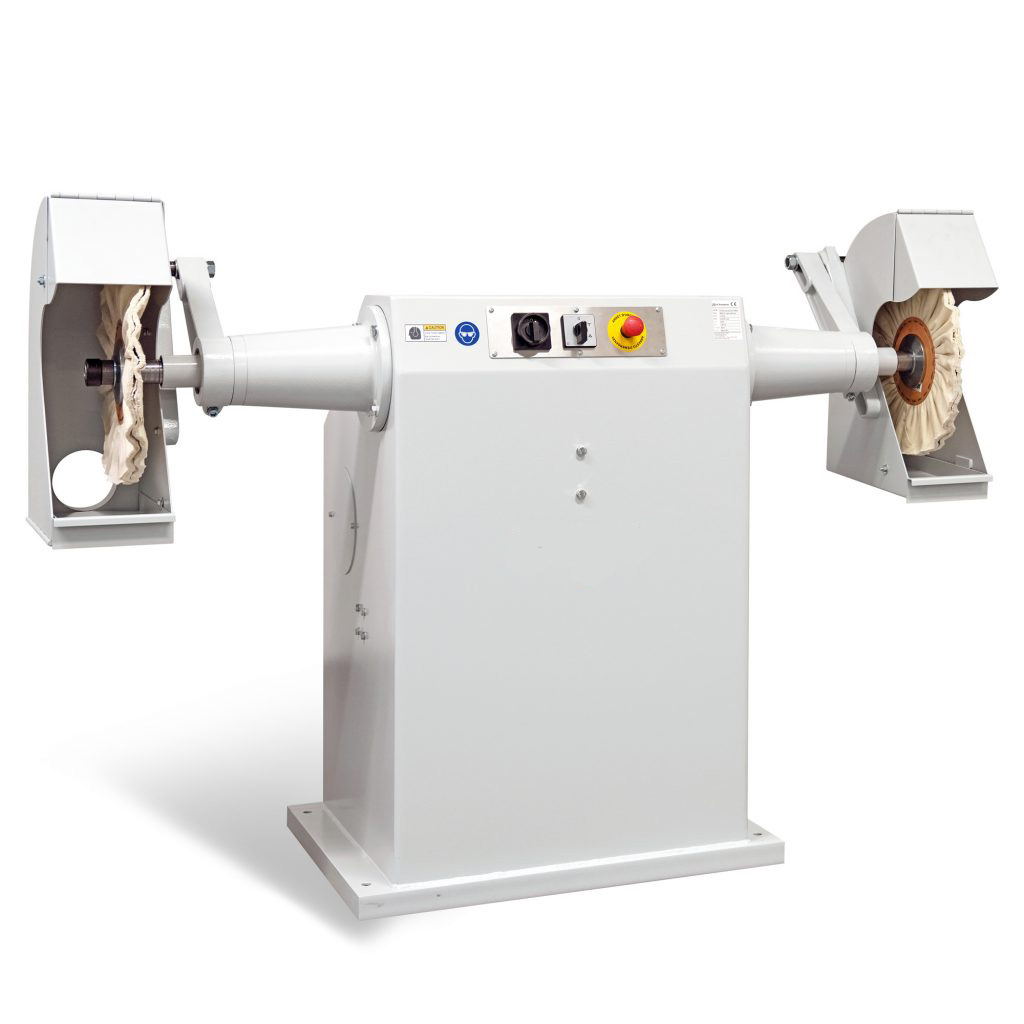

Extraction hood S 400 with flapwheel LHS.
Extraction hood S 400 with polishing wheel RHS.

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

    Request a quote


    Your contact details





    Address



    These details enable us to recommend the most suitable system: (optional)










    Information about the machine used (optional)










    We need fields marked with * to process your request.

    Request a quote

    Technical data

    Zeichnung Poliermaschine Typ SMZ 57
    TypeSMZ 57 ESMZ 57
    Spindle height in mm:600 / 1000600 / 1000
    Mains voltage:400V, 50Hz, 3PH/PE400V, 50Hz, 3PH/PE
    Engine power:see nameplate on the machine:
    4,0 kW, 5,5 kW, 7,5kW    		see nameplate on the machine:
    4,0 kW, 5,5 kW, 7,5kW
    Drehzahl:see nameplate on the machine:
    3 levels (in the range from 1200 – 3500)    		see nameplate on the machine:
    3 levels (in the range from 1200 – 3500)
    Length in mm:12341688
    Width in mm:665665
    Height in mm:740 / 1140740 / 1140
    Weight in kg:190 / 235230 / 275

    Accessoires

    TypeSMZ 57

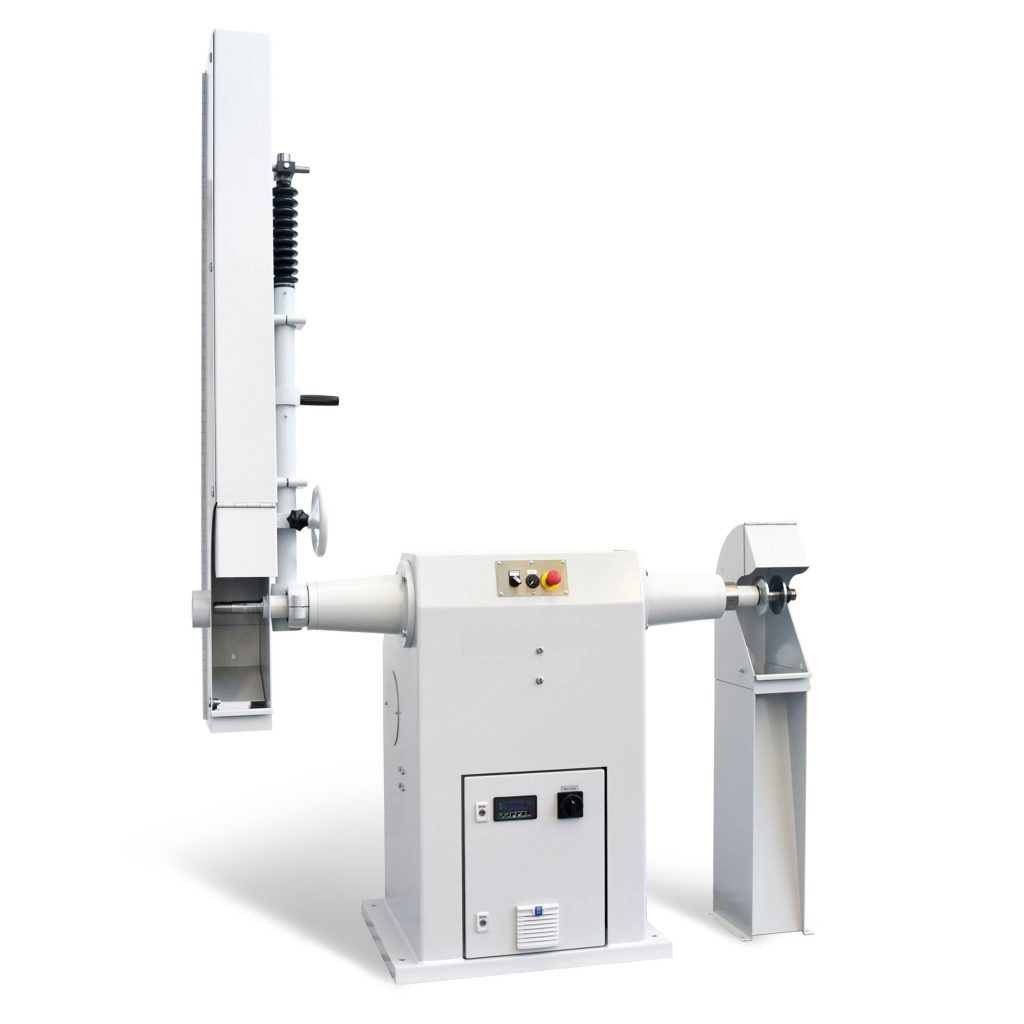

    Abrasive belt head for belt mmEB 3-S
    3500 x 100 max.
    Polishing centre

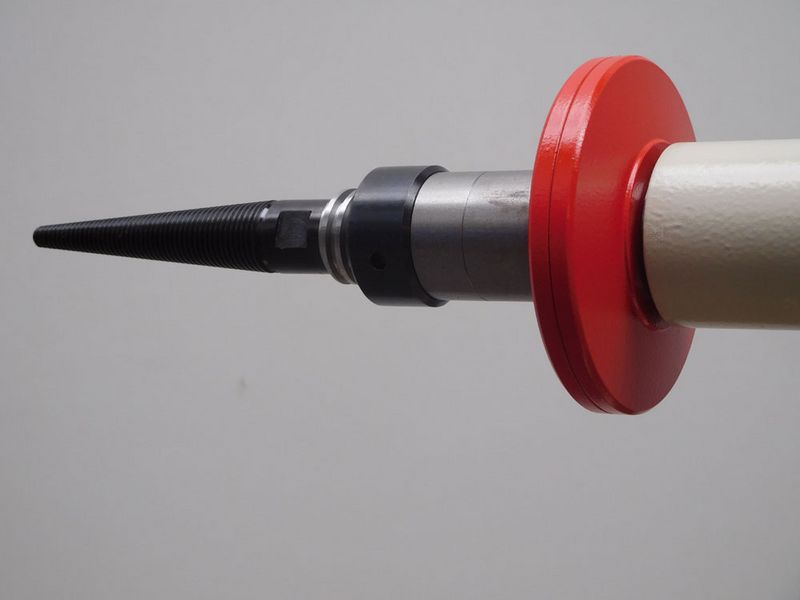

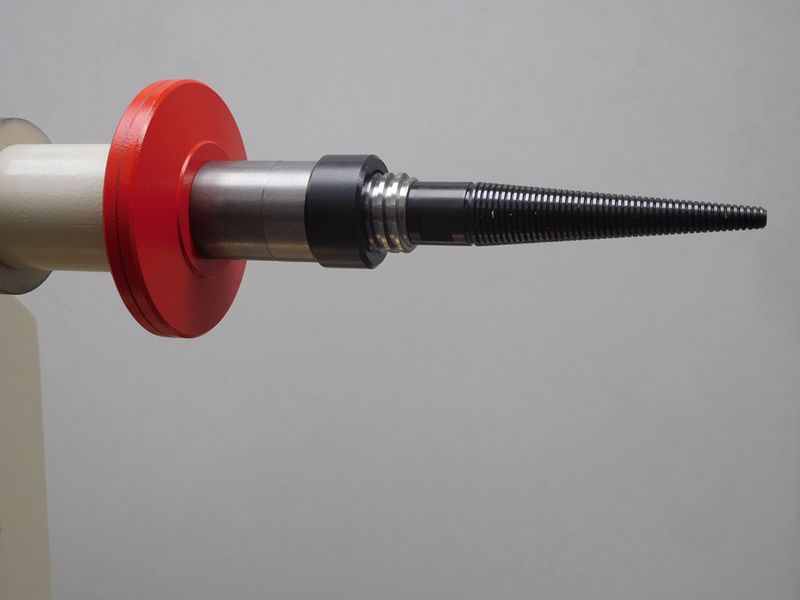

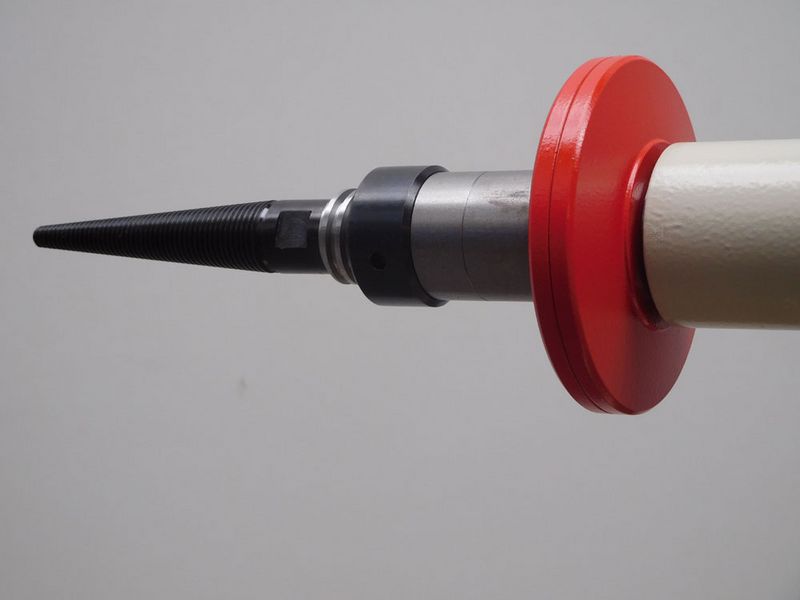

    Polishing mandrel    		M 16
    Extraction hoods dia400
    500
