Polishing and deburring machine, type KSP 100

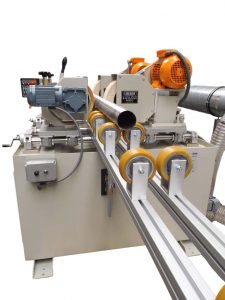

Tube polishing machine with swivelling polishing head, type KSP 100

Welded frame with built-in dust suction in the machine base
Polishing head can be swivelled in both directions for best polishing and deburring results
Work piece lengths according to the guide system and work piece weight
Electric system integrated in the machine frame
Optional: paste spray gun system including tank

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

Request a quote

Request a quote for the following machine:

Your contact details

Name:*

Company:

E-mail address:*

Phone:

Address

Street, No.:*

ZIP / City:*

These details enable us to recommend the most suitable system: (optional)

Description of workpiece:

Required operation and
finish:

Type of material:

Dimensions:

What has to be taken into consideration?

Production rate per day:

Production rate per series:

What time cycle?

Do you need increased
capacity?

Information about the machine used (optional)

Machine used:

Belt speed:

Type of contact wheel:

Time / quantity / grit:

Do you employ skilled
operators?

Do you employ unskilled operators?

How many operators are employed at present?

Your message (optional):

I have read the privacy policy. I agree that my information and data will be collected and stored electronically to answer my inquiry. Note: You can revoke your consent at any time in the future by sending an email to info@wloeser.com.*

We need fields marked with * to process your request.

Technical data
Polishing wheel unit
Videos
Accessories, data sheets and spare parts
Gallery

Technical data

Motor capacity	3.0 kW, frequency controlled
Wheel dimensions	300 x 100 mm
Pinch roll width	75 mm, optional 100 mm
Diameter range	10 – 150 mm
Pinch roll gear	0.37 kW, frequency controlled

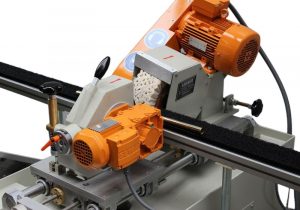

Polishing wheel unit

Polishing head with special, cantileverd drive shaft for fast changing between sisal wheels, polishing wheels, non-woven wheels or rubber bonded wheels. Angle setting via spindle.
