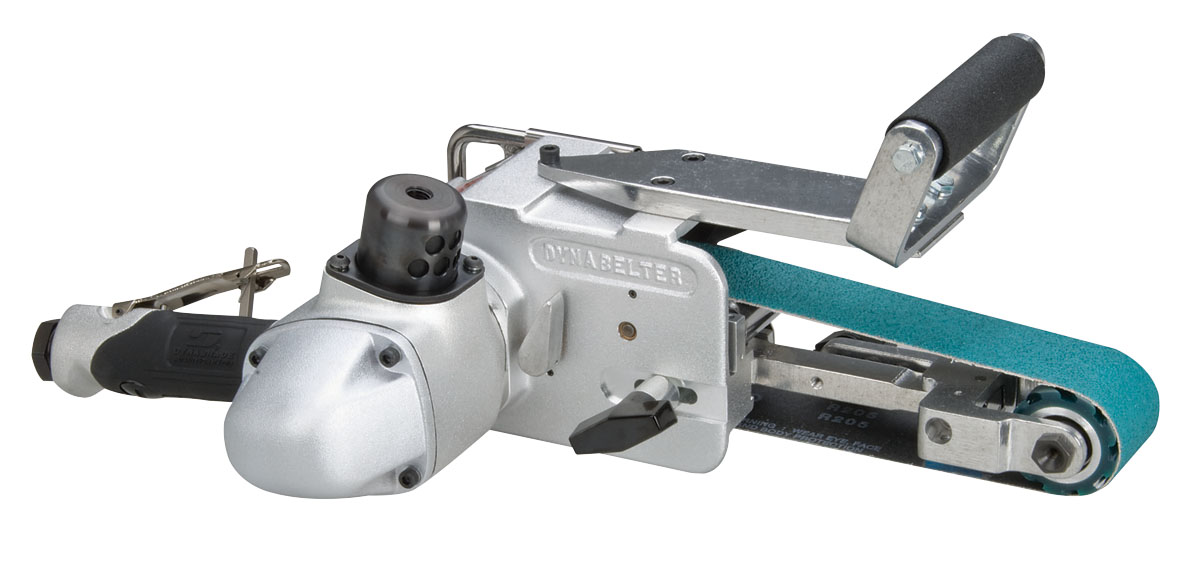

Pneumatic and electric belt grinding machines Dynabrade 11477

  • For weld grinding, blending and finishing, on metal and other surfaces. Dynabelter is ideal for work on ferrous and non-ferrous metals, wood, plastic, stone and composites
  • Uses include grinding cylinders, deburring castings, cleaning welds and fabricating metals. Also excellent for polishing tubing, deburring structural steel, finish-dimensioning on lathe work and blending inside corners. Safety-lock lever throttle included
  • Extra Heavy-Duty, 2.0 hp model accepts 2″ wide x 30″ long abrasive belts. Includes pressure bar with top control handle. Includes 11870 Contact Arm Assembly
  • 11871 Contact Arm with 4″ dia. contact wheel is available for 2″ wide x 60″ long belts, providing a 20″ workable reach. Optional 11891 Platen is available for 11871 Arm
  • Ideal for use with 1/2″ Dynaswivel, and 98273 Coupler/Plug Assembly

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: Available at short notice

    Request a quote


    Your contact details





    Address



    These details enable us to recommend the most suitable system: (optional)










    Information about the machine used (optional)










    We need fields marked with * to process your request.

    Request a quote

    Electric belt grinding machine 11477 EL

    Including contact arm 11870 / upper handle – for grinding belts 50 x 760mm

    Dynabrade Elektrobandschleifer 11477 EL

    Technical specifications

    Modellnummer1147711477 EL
    Motor capacity1500 W1400 W
    Revs. per min.7.2002.800 -11.000
    Noise level82 dB(A)87 dB(A)
    Air consumption1950 L/min230 V
    Weight4,5 kg4,3 kg
    Length546 mm595 mm
    Height197 mm197 mm

    Data sheets and spare parts

    Operating instructions and spare parts list Dynabrade pneumatic and electric belt sander type 11477 (PDF)
