Pneumatic belt grinding machines of type Dynabrade 14300 / 14303 / 14306

test

Pneumatic belt grinding machines of type Dynabrade 14300 / 14303 / 14306

  • For grinding and polishing by means of free belt grinding or using the grinding pad

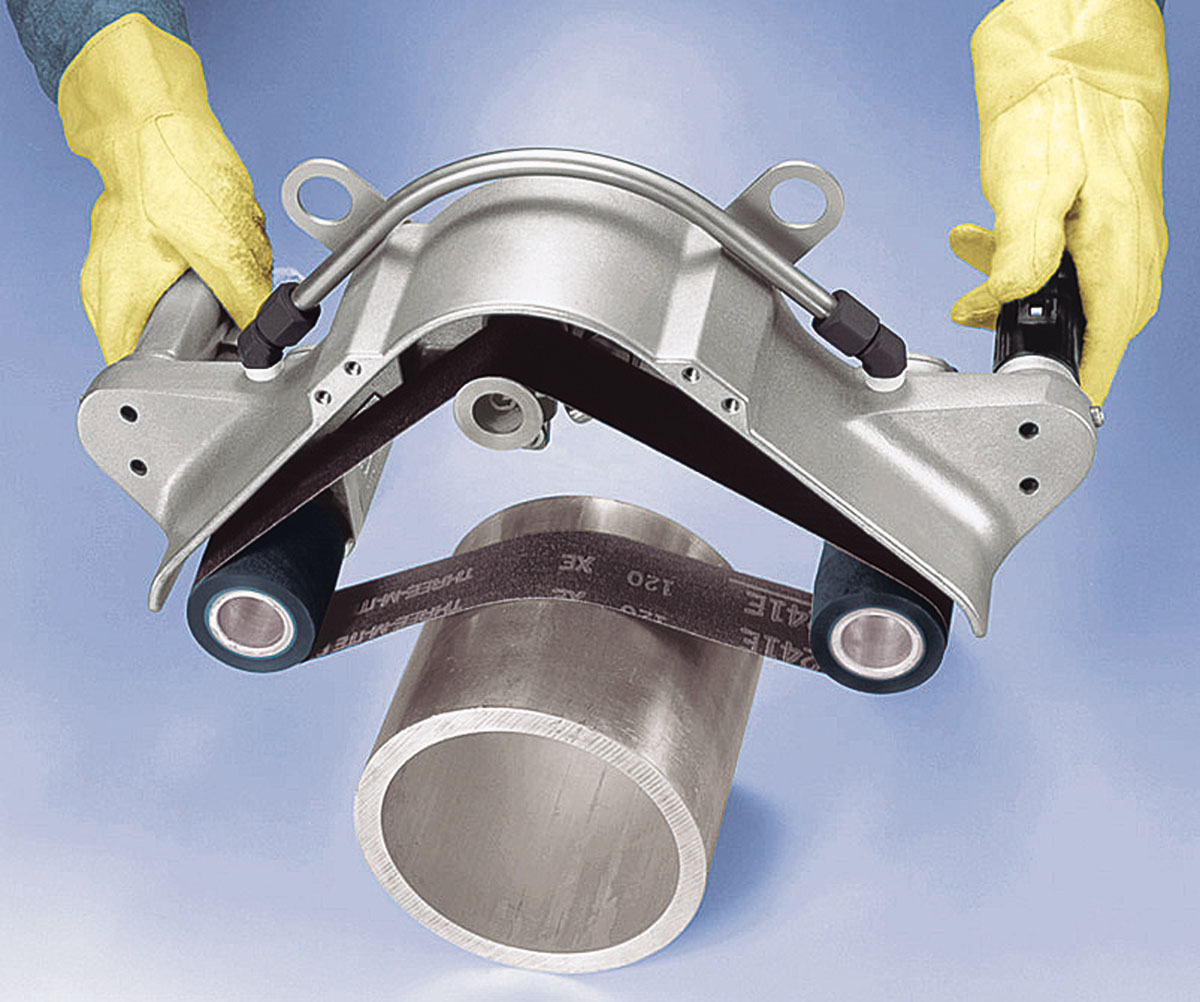

  • Free belt machining of tubes and rollers made of metal, wood or plastic with diameters of up to 250mm
  • Surface treatment using the grinding pad e.g. on wooden frames or metal frames, for grinding weld seams or for improving surfaces
  • Simple design featuring one motor of type 14300, for grinding belts 50 x 863mm

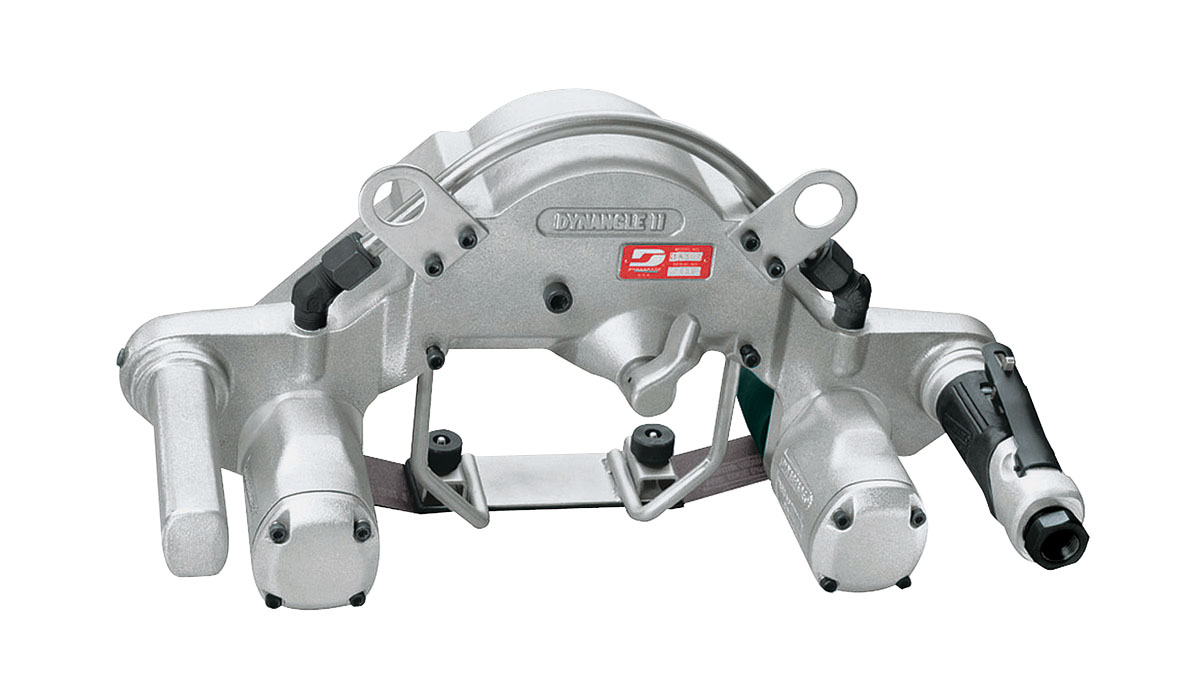

  • Sturdy design featuring two motors of type 14303 running in parallel, for grinding belts 50 x 863mm
  • Sturdy design featuring two motors running in parallel and extended working surface, for belts 50 x 1143mm, of type 14306
  • All machines including start lever and safety lever, hanger brackets and compressed-air connection

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: Available at short notice

    Request a quote


    Your contact details





    Address



    These details enable us to recommend the most suitable system: (optional)










    Information about the machine used (optional)










    We need fields marked with * to process your request.

    Request a quote

    Technical specifications

    Model number143001430314306
    Motor capacity900 W1800 W1800 W
    Revs. per min.13.00013.00013.000
    Noise level85 dB(A)85 dB(A)85 dB(A)
    Air consumption1500 L/min.3000 L/min.3000 L/min.
    Weight7,6 kg8,2 kg8,7 kg
    Length479 mm479 mm581 mm
    Height216 mm243 mm241 mm

    Data sheets and spare parts

    Replacement parts belt grinding machine Dynabrade 14306
