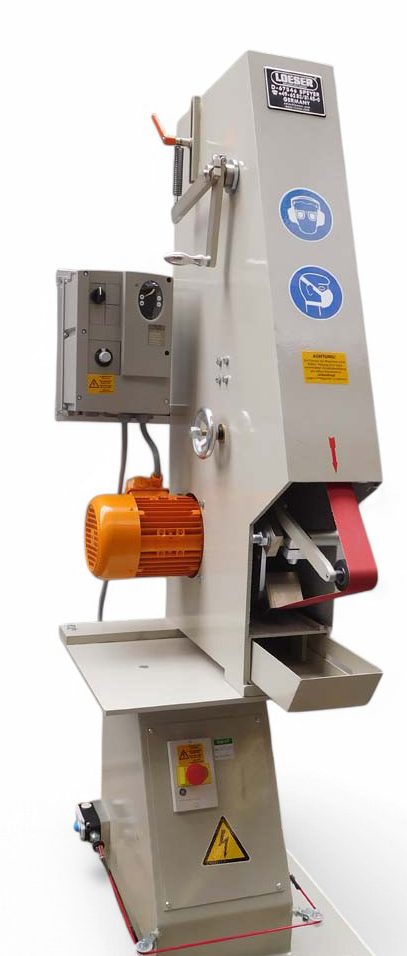

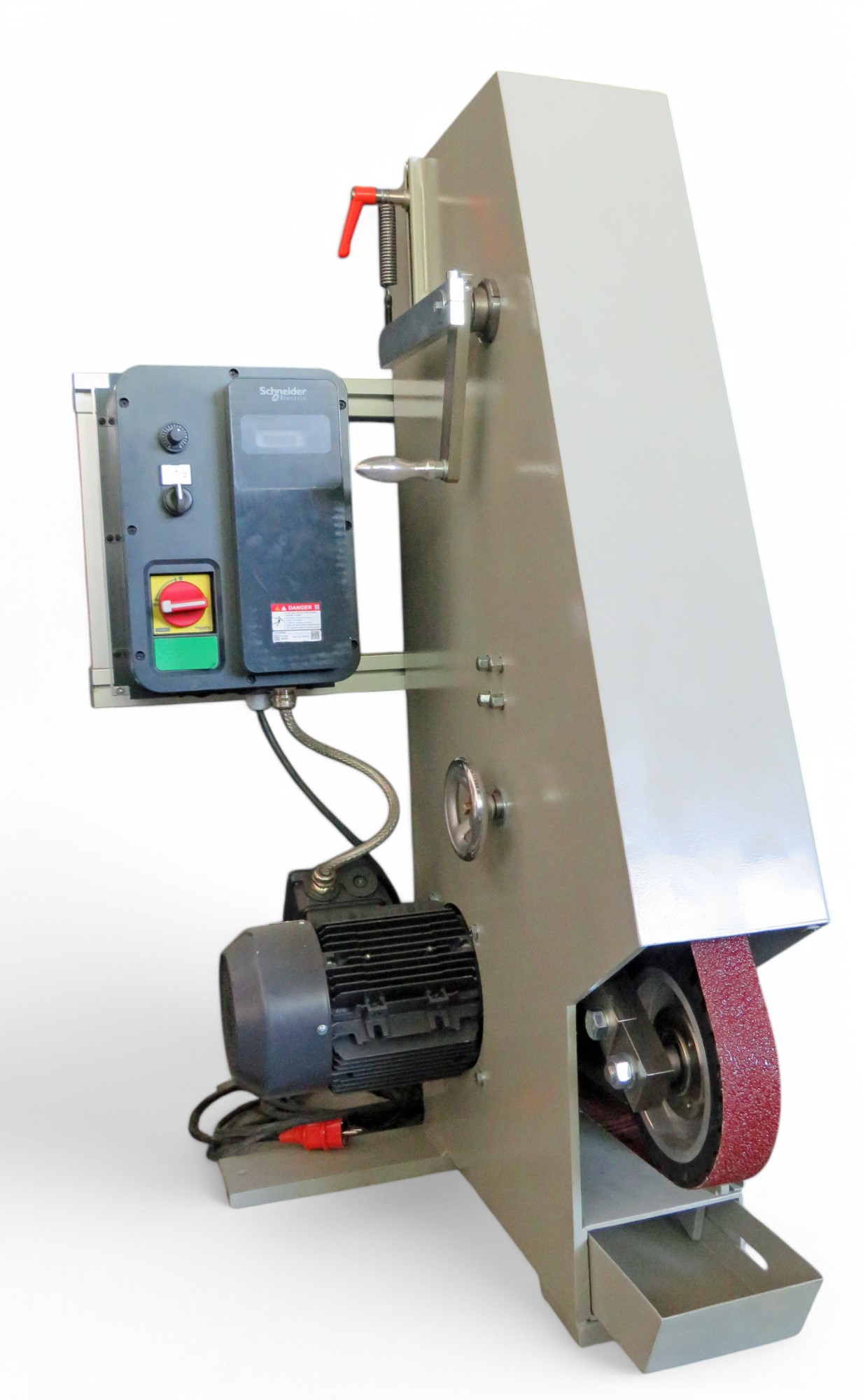

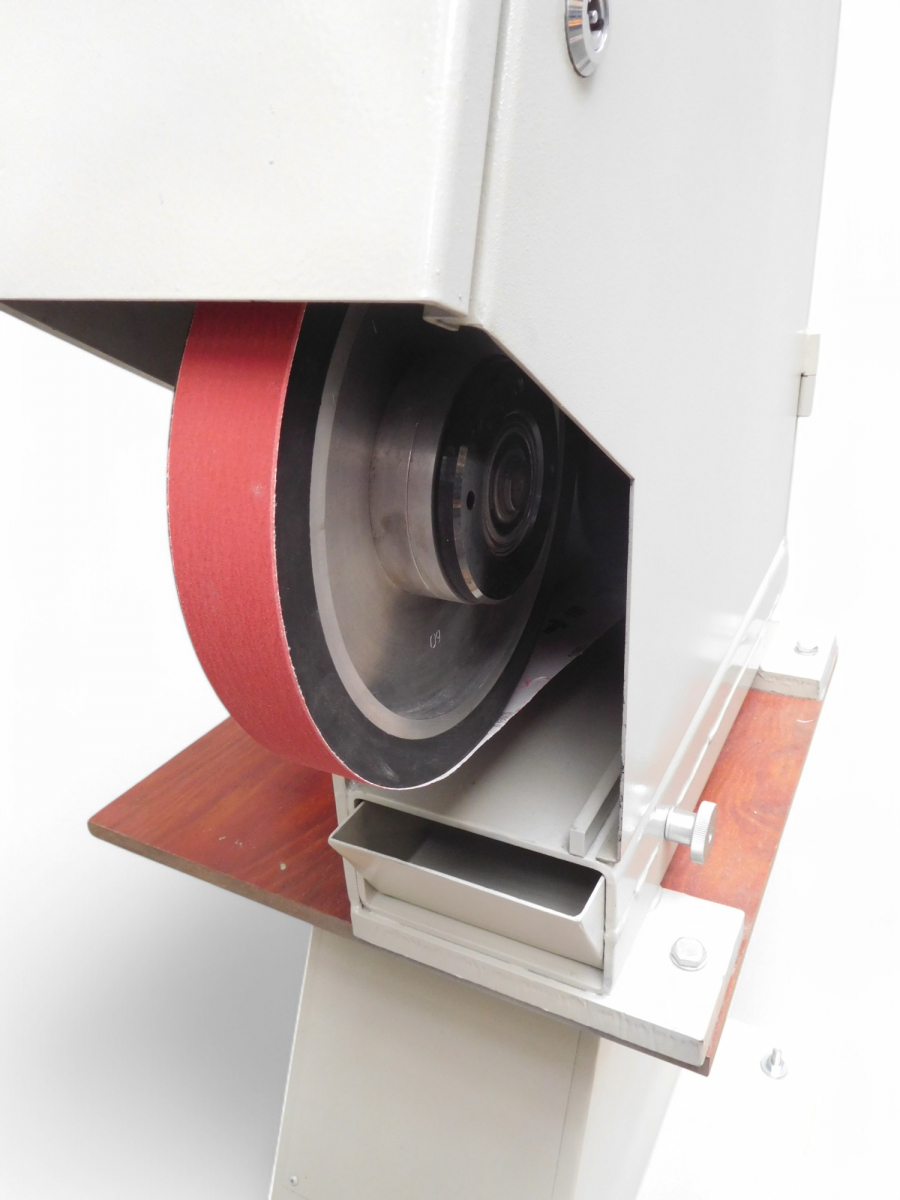

Abrasive belt grinding machine, type KS 363

Sturdy and simple steel weld construction
Table design allows for adapting working height to operator’s posture
Belt tensioning by means of spring tension, adjustable
Integrated suction funnel
Pneumatic belt tensioning upon request
Maintenance-free, dust-proof contact wheel mounting

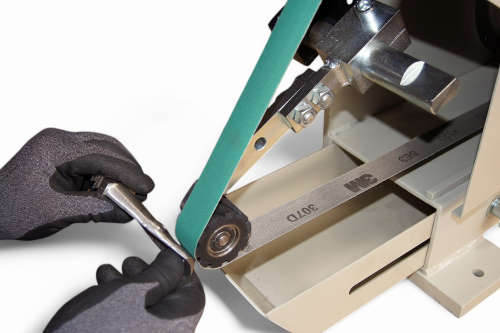

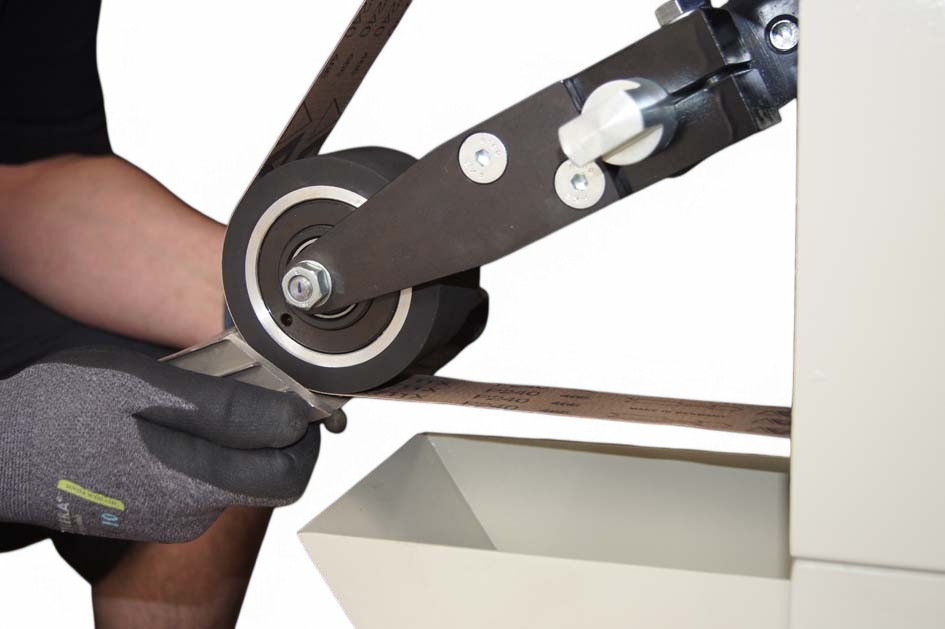

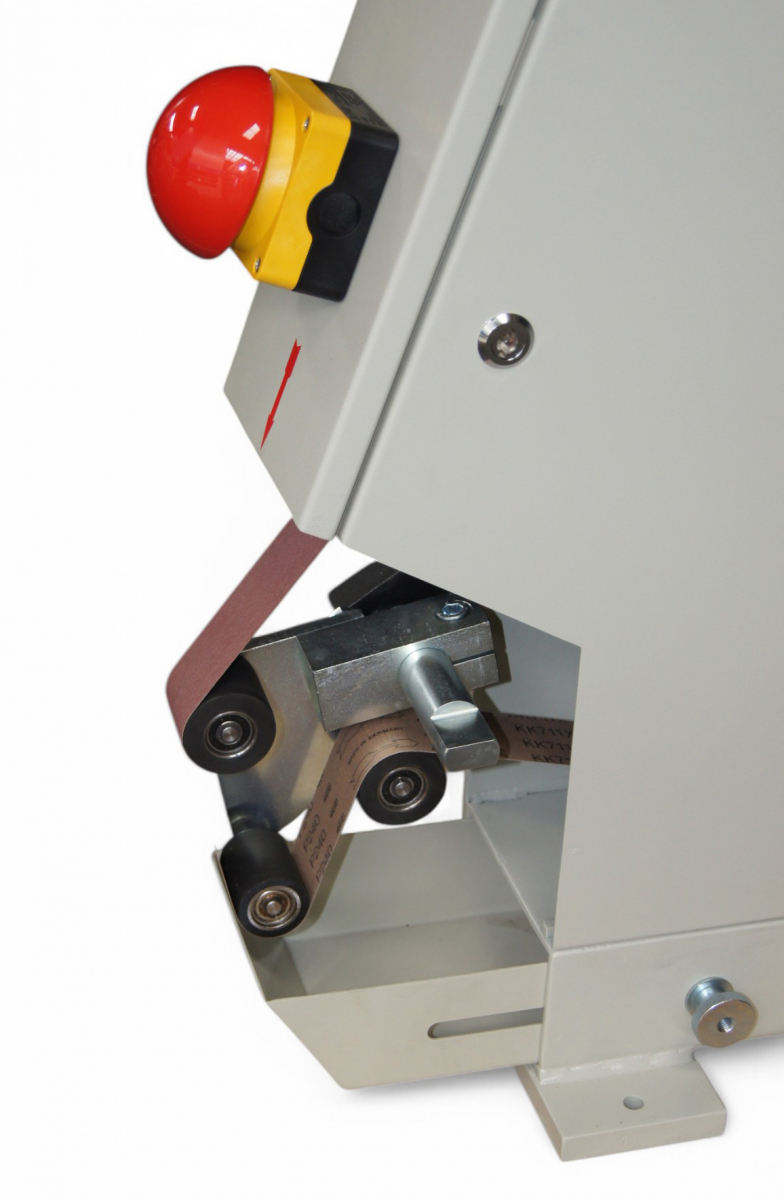

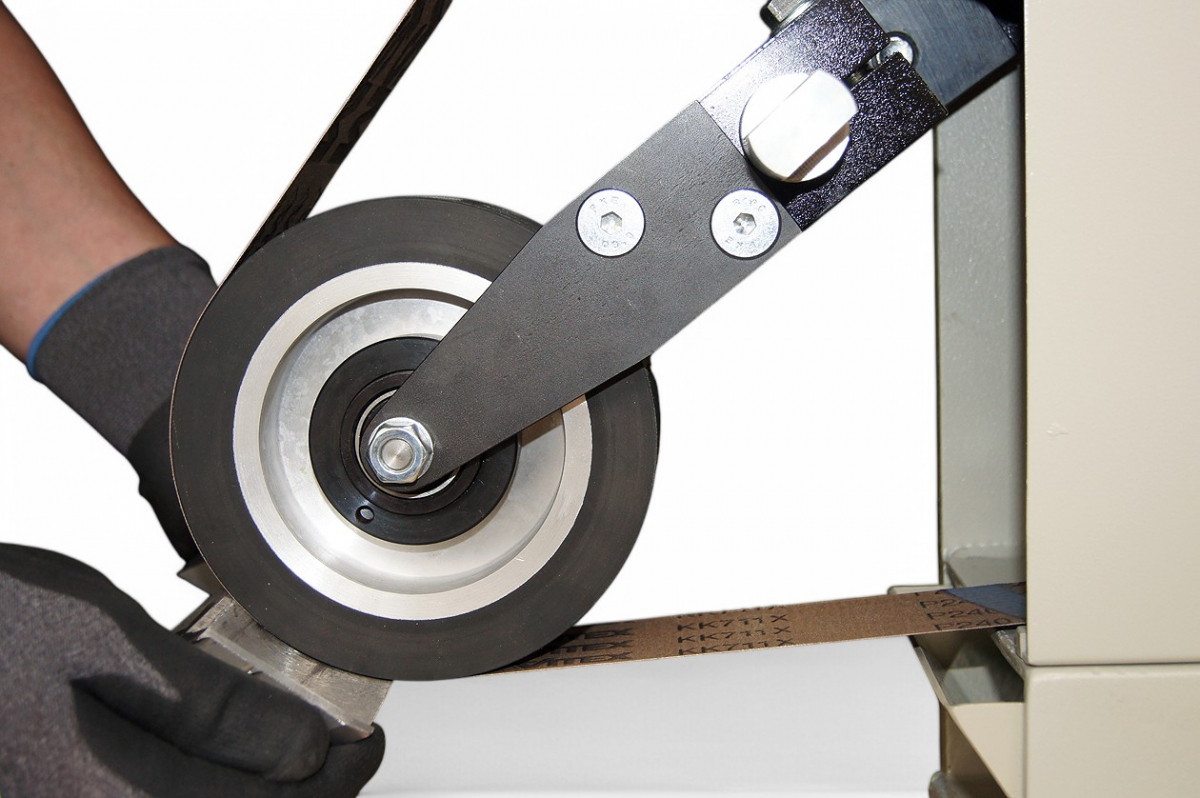

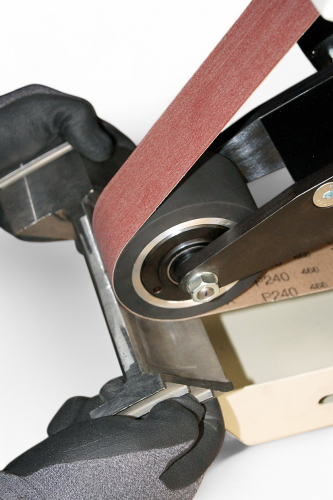

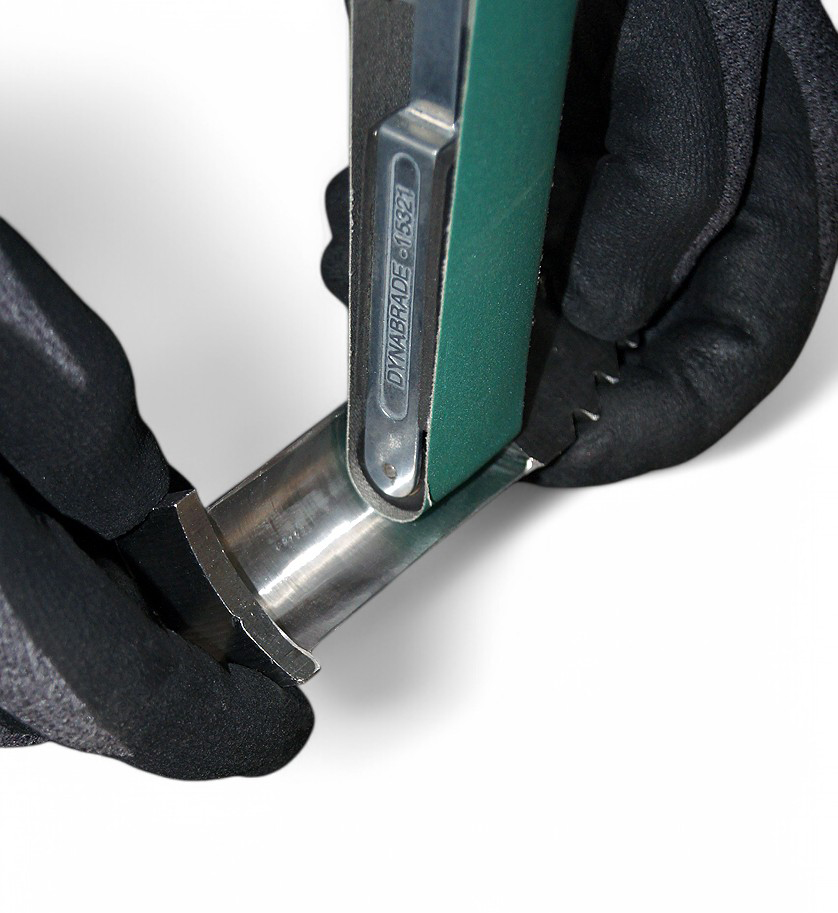

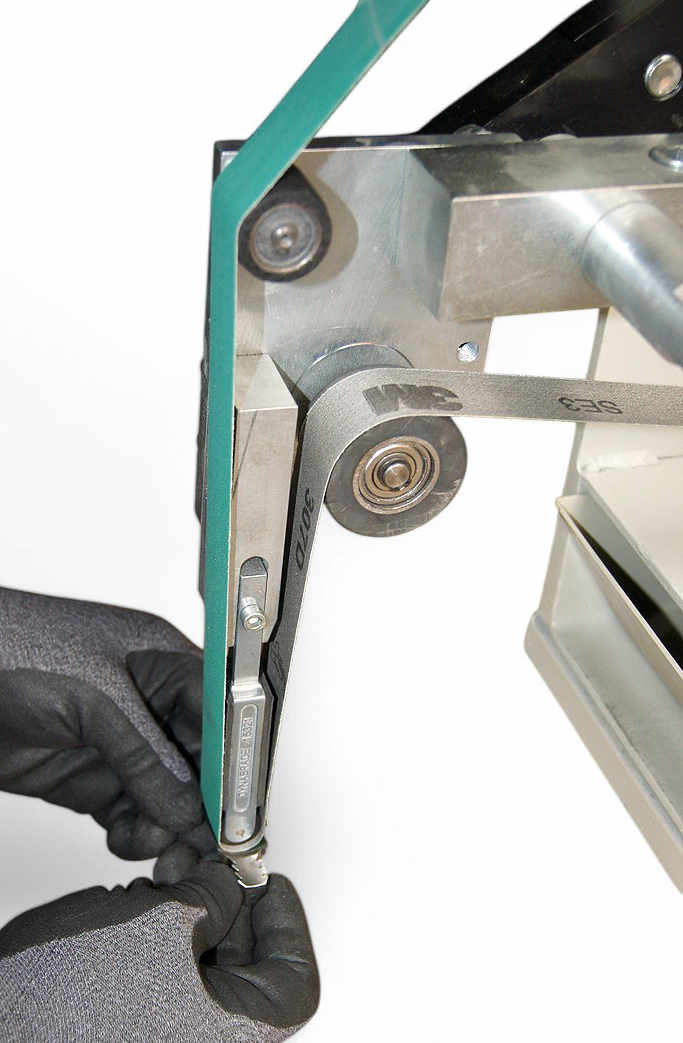

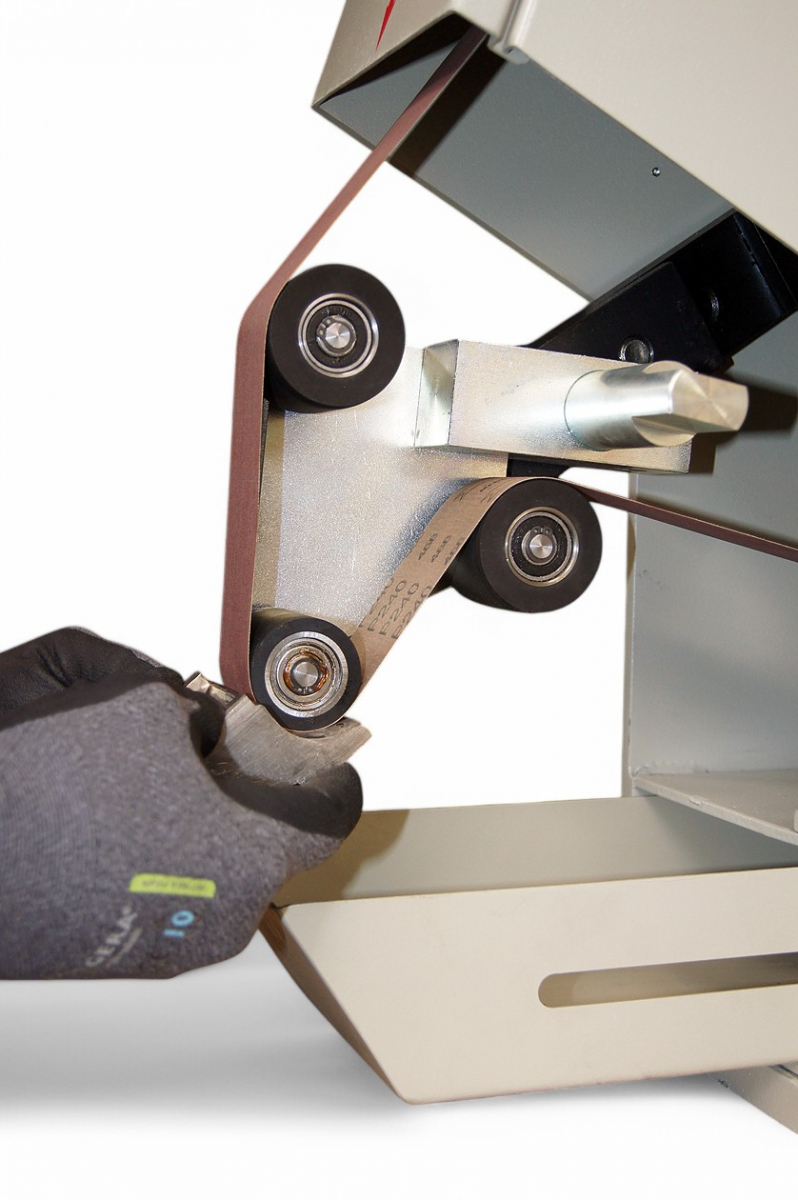

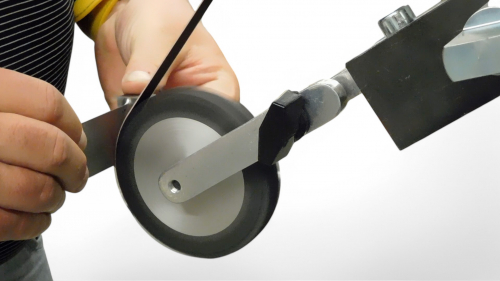

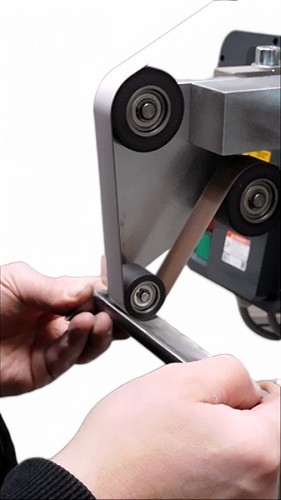

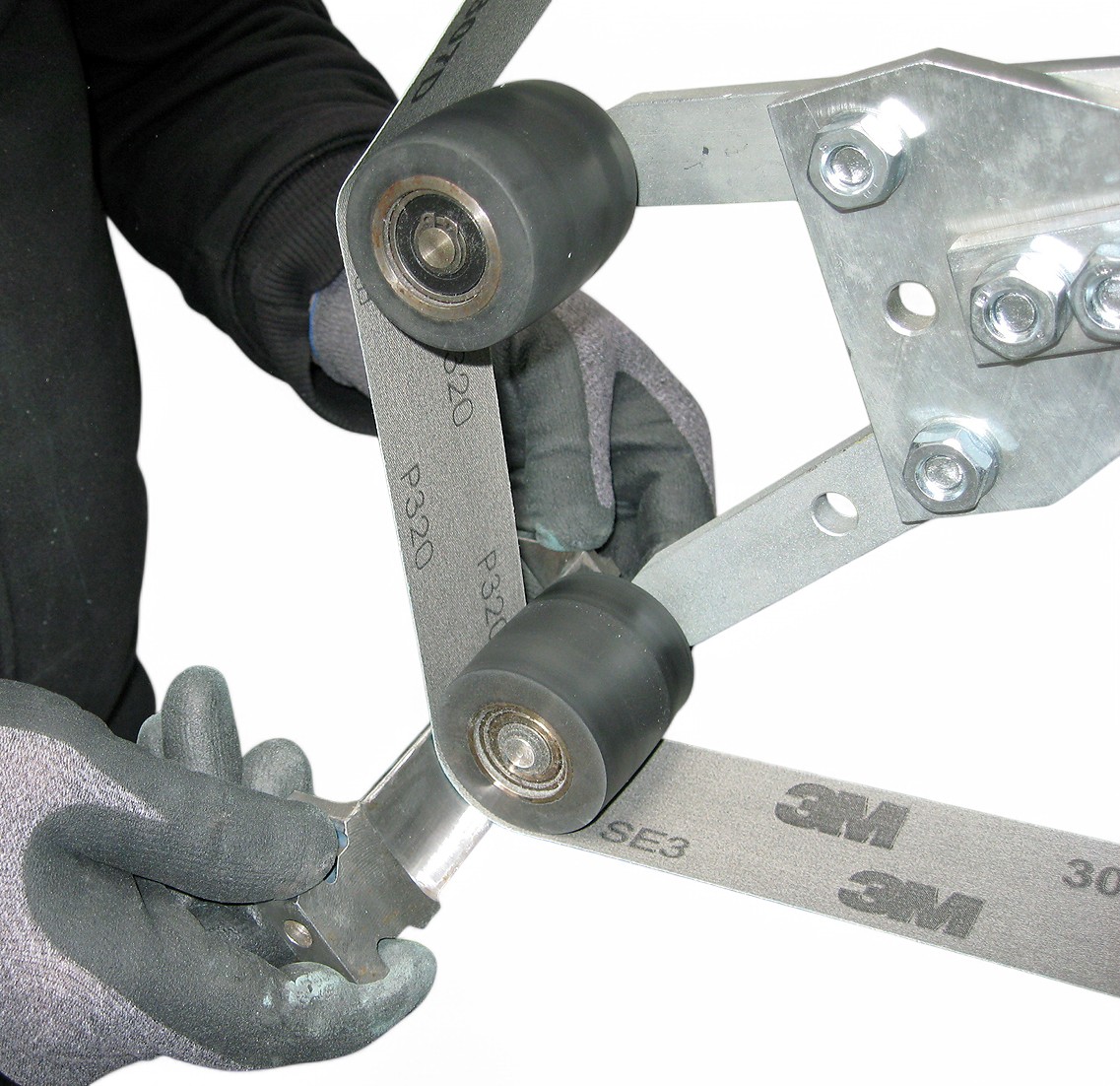

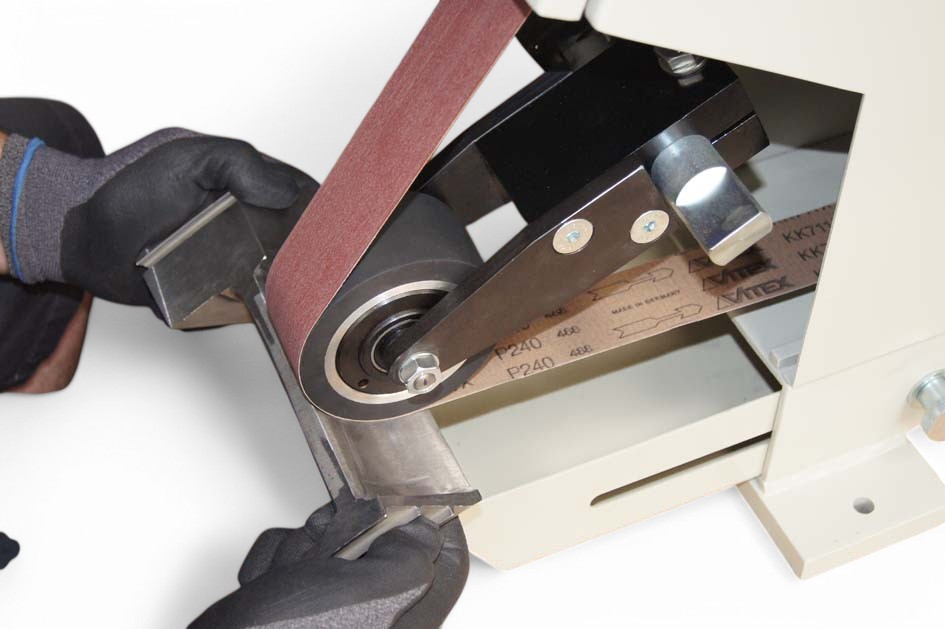

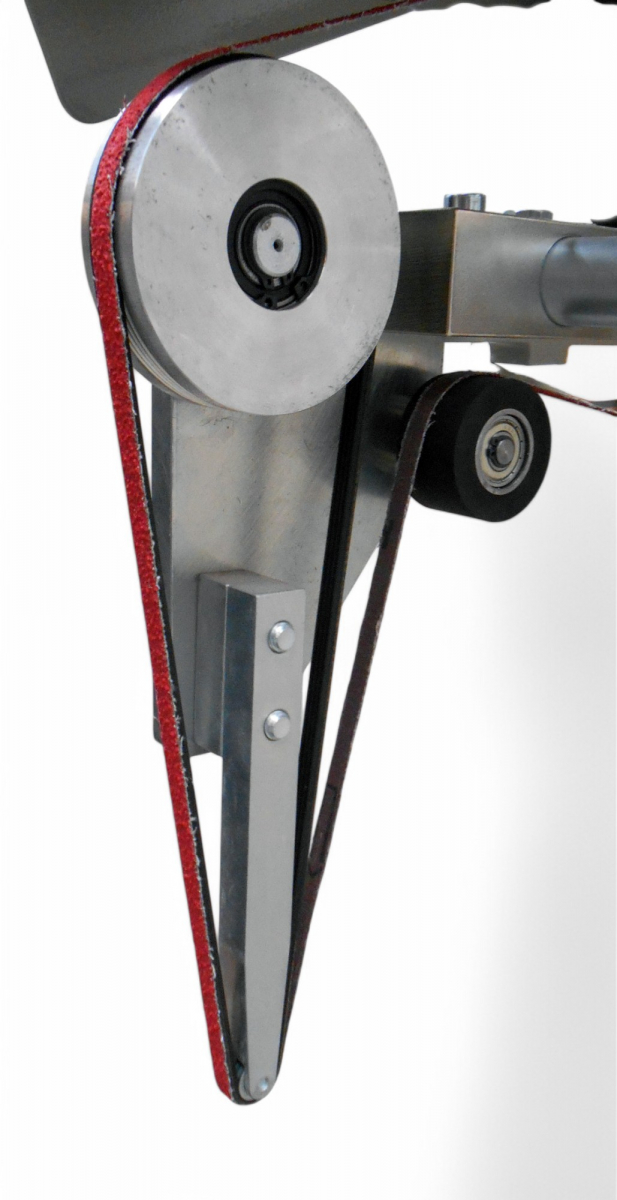

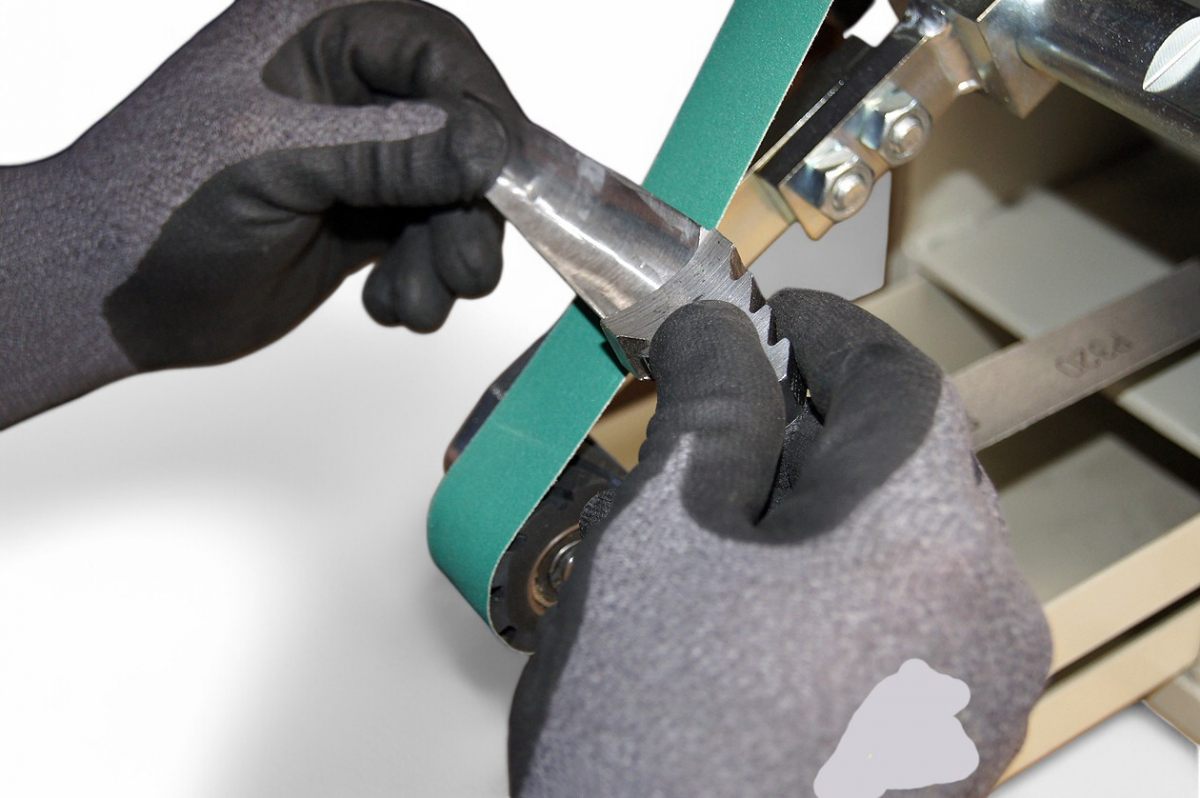

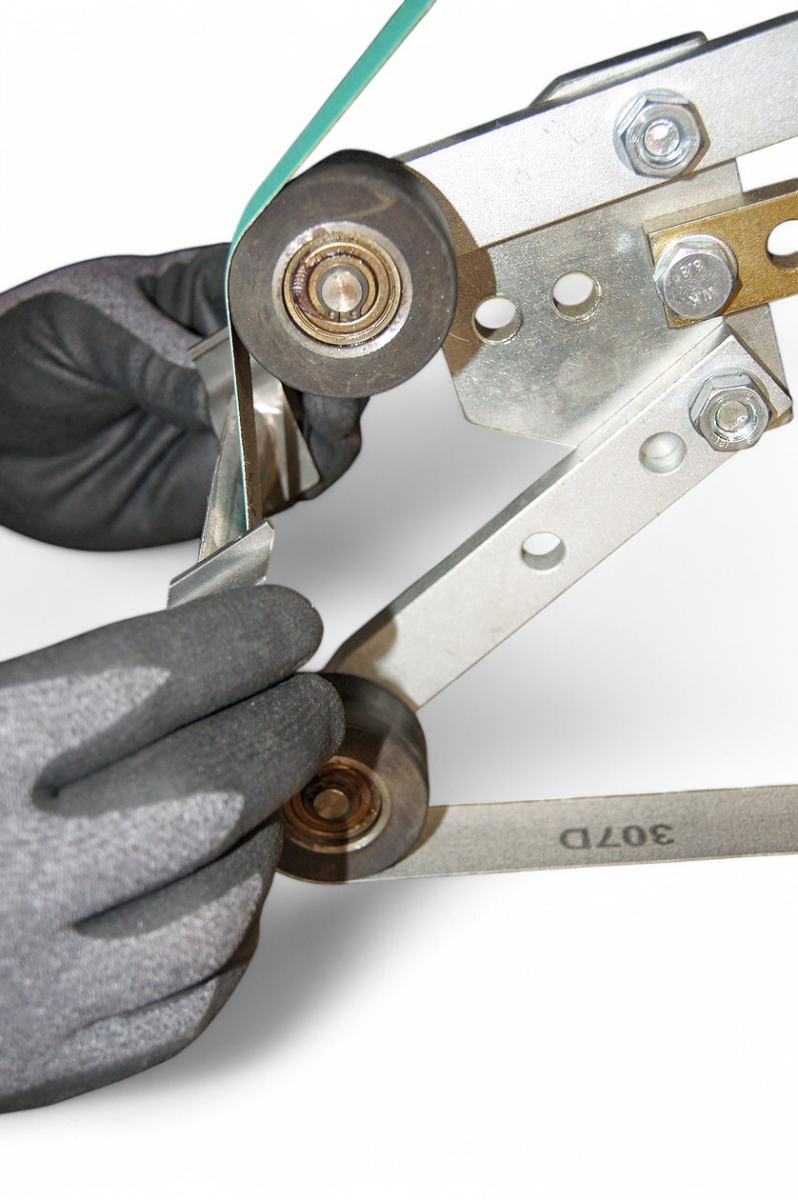

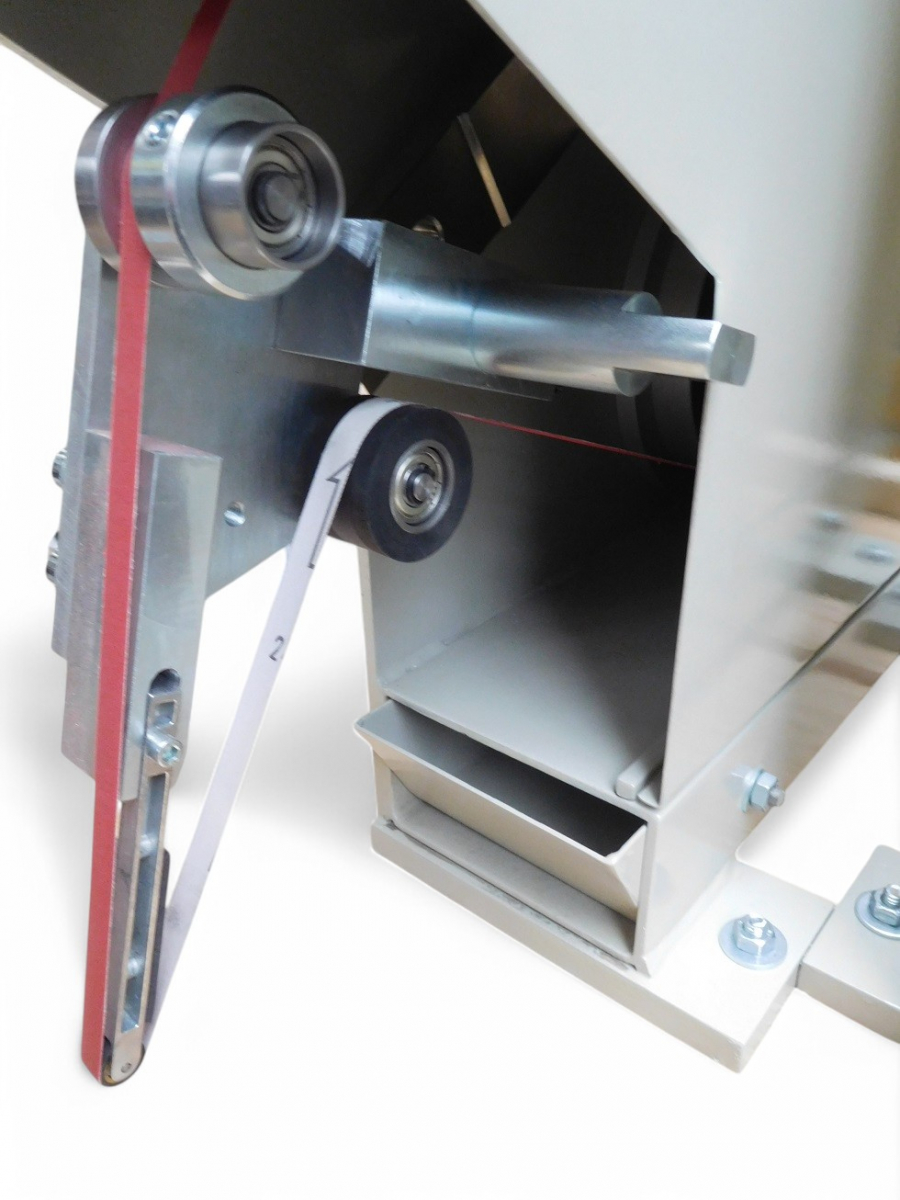

Interchangeable grinding attachments

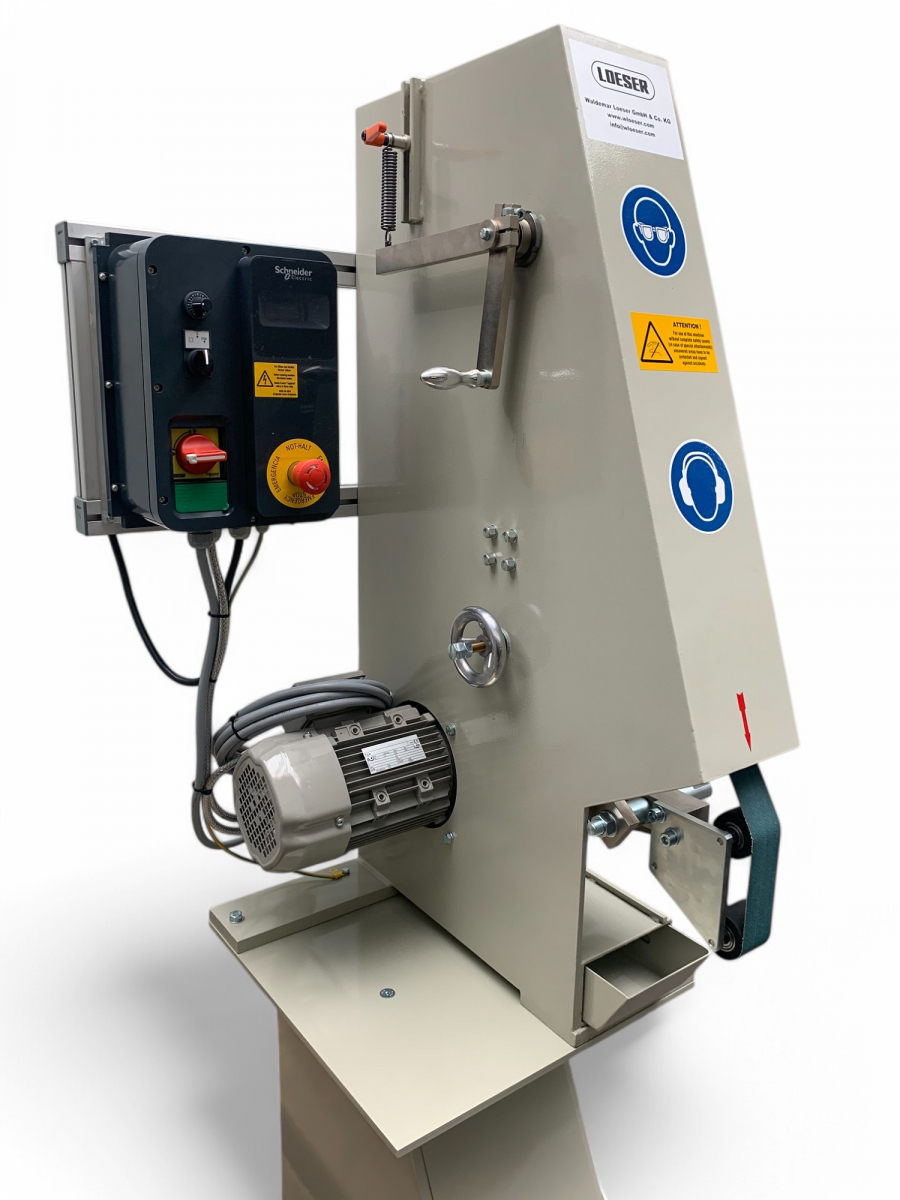

Dual-speed motor for belt speeds of approx. 10 – 30 ms-1 possible, or special, infinitely adjustable three-phase motor
Different belt widths are possible.

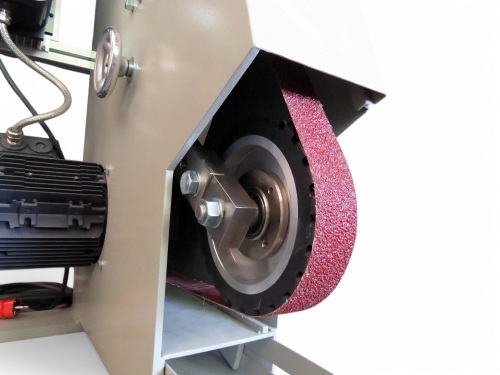

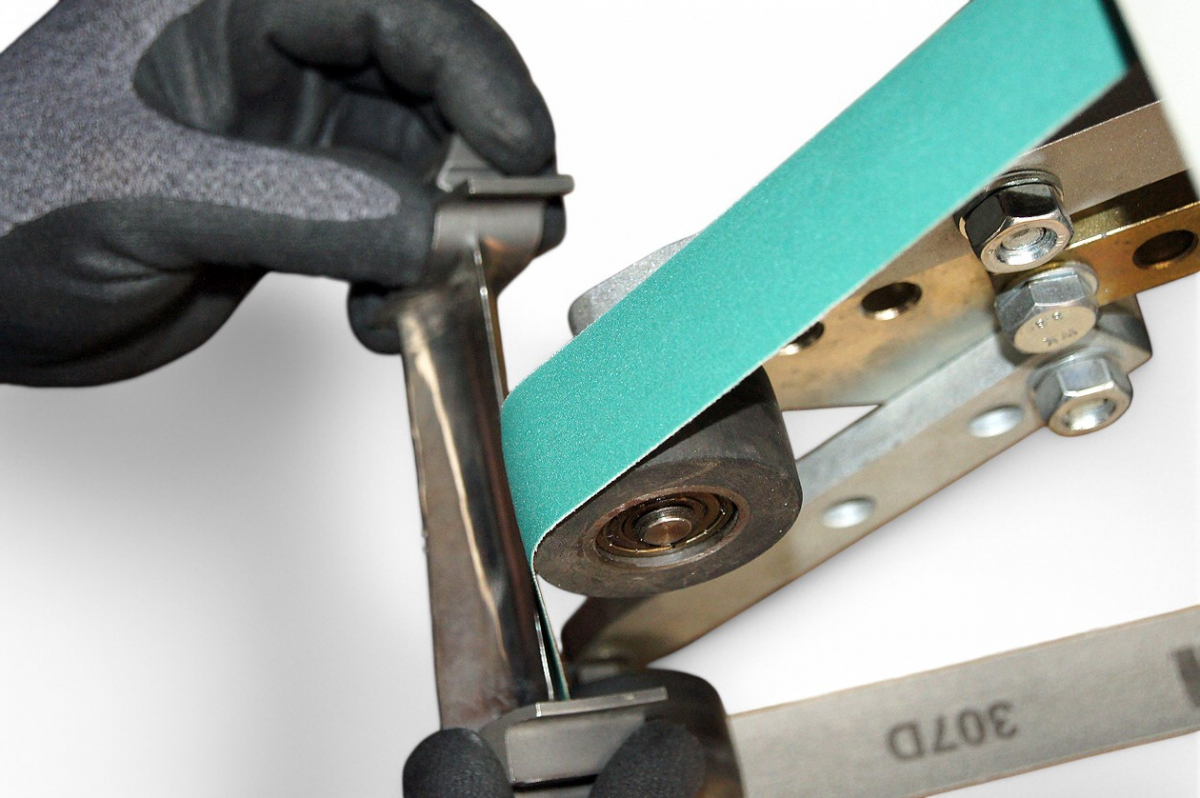

Different contact wheels are possible.

Industry:

Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder

Scope:

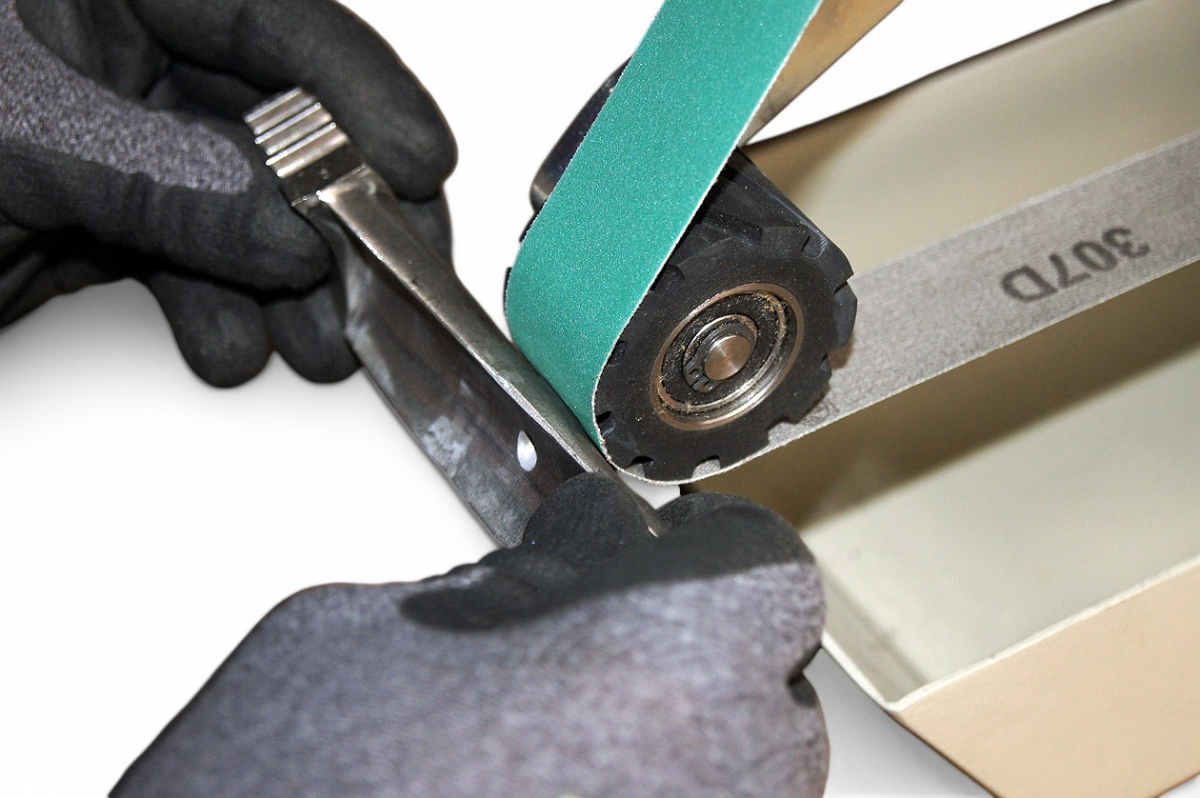

Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings

Delivery time: 6-8 weeks

Request a quote

Request a quote for the following machine:

Your contact details

Name:*

Company:

E-mail address:*

Phone:

Address

Street, No.:*

ZIP / City:*

These details enable us to recommend the most suitable system: (optional)

Description of workpiece:

Required operation and
finish:

Type of material:

Dimensions:

What has to be taken into consideration?

Production rate per day:

Production rate per series:

What time cycle?

Do you need increased
capacity?

Information about the machine used (optional)

Machine used:

Belt speed:

Type of contact wheel:

Time / quantity / grit:

Do you employ skilled
operators?

Do you employ unskilled operators?

How many operators are employed at present?

Your message (optional):

I have read the privacy policy. I agree that my information and data will be collected and stored electronically to answer my inquiry. Note: You can revoke your consent at any time in the future by sending an email to info@wloeser.com.*

We need fields marked with * to process your request.

Technical data
Applications
Accessories, data sheets and spare parts
Gallery

Technical data

Motor capacity	1.1 / 1.5 kW at 1,450 / 2,900 Revs./min, or infinitely adjustable with DC motor
Contact wheel diameter	from 15 – 200 mm
Grinding belt length	2.500 mm
Grinding belt width	6 – 50 mm
Cutting speed	from 10,5 – 27 ms-1
Weight	ca. 150 kg
