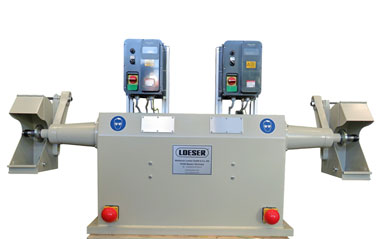

Polishing Machines Type SMG
Polishing motors 2 versions
SMG 56 with internal motor Spindle height 600 mm, low column for sitting work
SMG 58 with external motor Spindle height 1,000mm, high column for standing work
Accesories:
Industry:
Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder
Scope:
Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings
Delivery time: 6-8 weeks
Technical data
| TYPE | ||||||||||||||||
| a | b | c ⌀ | d ⌀ | D ⌀ | e | f | g | h | H | i | j (max) | k | l | l₁ | m | |
| SMG 56 | 1260 | 665 | 18 | 45 | 35 | 1200 | 525 | 45 | 140 | 600/1.000 | 125 | 70 | 1692 | 2188 | 248 | 276 |
| SMG 58 | 780 | 665 | 18 | 45 | 35 | 720 | 525 | 45 | 140 | 600/11.000 | 125 | 70 | 1192 | 1688 | 248 | 276 |
| Type | SMG 58 with external motor | SMG 56 with internal motor |
| Rating kW | 2,2/2,2 3,0/3,0 4,0/3,0 | 2,2/2,2 3,0/3,0 4,0/4,0 5,5/5,5 7,5/7,5 |
| rpm | 2 x 3stufig fix 1.500 – 2.900 oder stufenlos | 2 x 3stufig fix 1.200 – 3.500 |
| Spindle height Weight | 600 mm 300 kg | 600 mm 310 kg |
| Spindle height Weight | 1000 mm 345 kg | 1000 mm 360 kg |
Accessoires
| Typ | SMG 58 | SMG 56 |
| Abrasive belt head for belt mm | EB 3-S 3500 x 100 max. | EB 3-S 3500 x 100 max. |
| Polishing centre Polishing mandrel | M 16 | M 16 |
| Extraction hoods dia | 400 500 | 400 500 600 |
