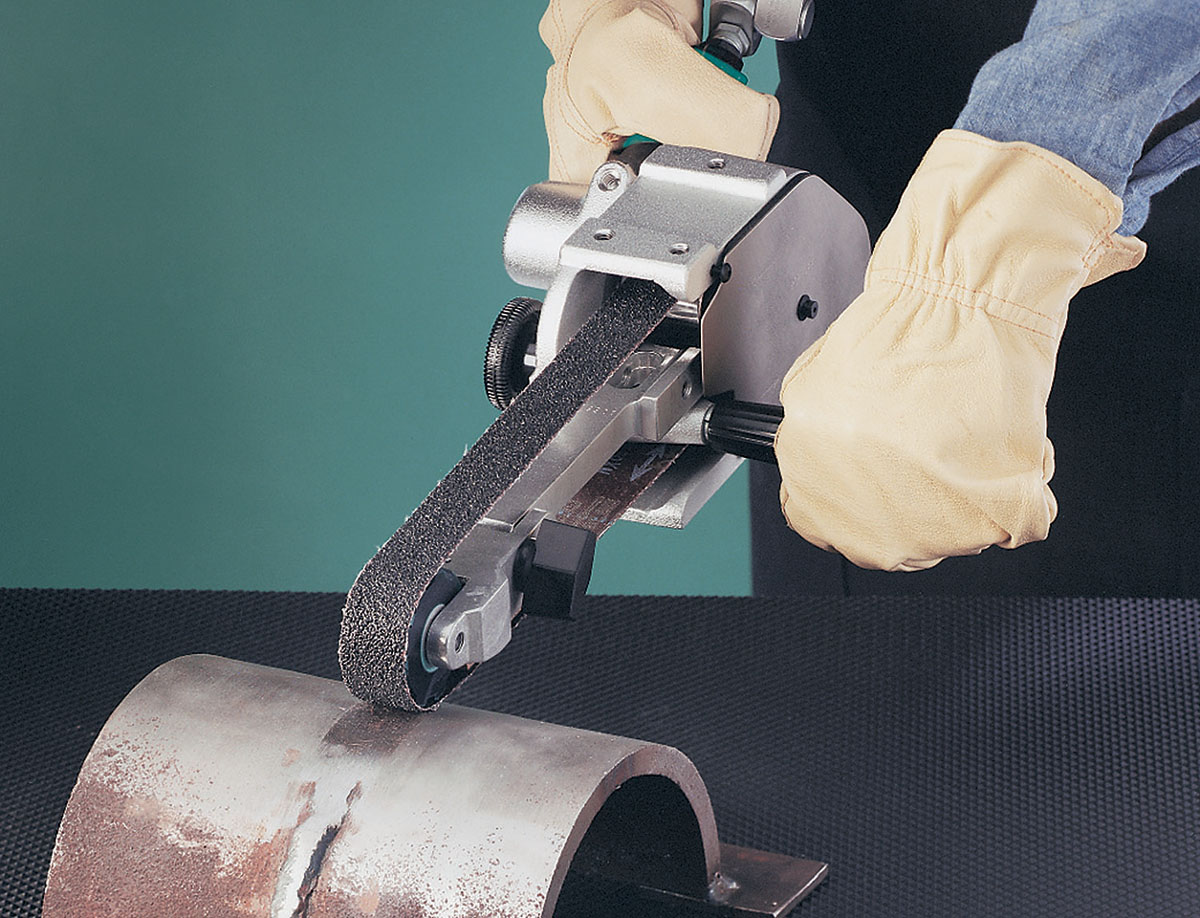

Pneumatic belt grinding machine Dynabrade 11475, 11476
Pneumatic belt grinding machine 11475, 11476 (including contact arm 11681 / lateral handle – for grinding belts 25 x 760mm)
Industry:
Metal construction, Automotive supplier, Aeronautical engineering, Tool making, Medical technology, Locksmith, Foundry, Contract grinder
Scope:
Stainless steel, high-alloy and unalloyed steel, non-ferrous metals, cast steel, aluminum, titanium, plastics, glass, paper, for components such as turbine blades or die-cast and investment castings
Delivery time: Available at short notice
Electric belt grinding machine 11476 EL
Including contact arm 11681 / upper handle – for grinding belts 25 x 760mm
Technical specifications
| Model number | 11475 | 11476 | 11476 EL |
| Motor capacity | 520 W | 900 W | 1400 W |
| Revs. per min. | 18.000 | 13.000 | 2.800 -11.000 |
| Noise level | 92 dB(A) | 89 dB(A) | 87 dB(A) |
| Air consumption | 850 L/min. | 1600 L/min. | 230 V |
| Weight | 3,4 kg | 4,5 kg | 3,7 kg |
| Length | 533 mm | 533 mm | 595 mm |
| Height | 184 mm | 184 mm | 184 mm |
